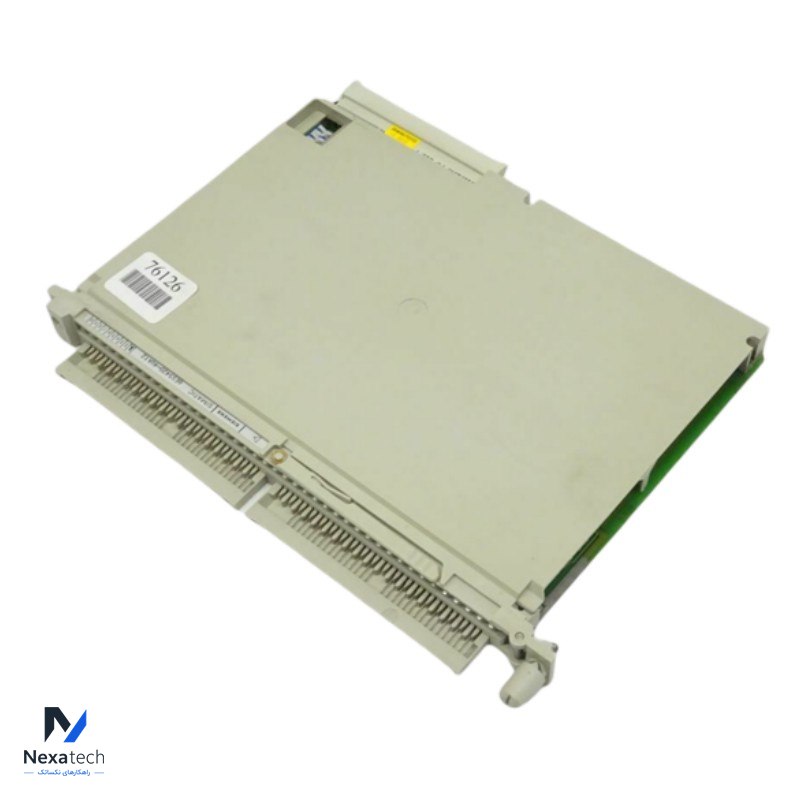

Siemens 6ES5420-4UA12 DIGITAL INPUT MODULE

The Siemens 6ES5420-4UA12 is a Digital Input Module from the SIMATIC S5 series. This module is designed to provide reliable digital input capabilities for industrial automation systems. Below are the key features, specifications, and common questions regarding this module.

Key Features of Siemens 6ES5420-4UA12 Digital Input Module:
Input Channels:

The module features 32 digital input channels, allowing for the connection of multiple digital devices such as sensors and switches.
Input Type:

Non-floating inputs, meaning that all inputs share a common ground reference. This configuration is suitable for various applications where isolation is not a primary requirement.

Voltage Range:

The module operates at a DC voltage of 24V, which is a standard voltage level for many industrial devices.
Compact Design:

The compact version of this module helps save space in control cabinets and facilitates easier integration into existing systems.
Compatibility:

Designed for use with the SIMATIC S5 series PLCs, this module is a direct replacement for existing systems requiring digital input capabilities.

Spare Part Availability:

The module is available as a spare part only, making it suitable for maintenance and repair of existing SIMATIC S5 systems.
LED Indicators:

Equipped with LED indicators for each input channel, providing real-time status feedback for monitoring input states.

Common Questions:
1. How many digital inputs does the 6ES5420-4UA12 module have?
Answer: The module has 32 digital input channels.

2. What type of input signals does this module accept?
Answer: This module accepts 24V DC digital signals from various devices such as sensors, switches, and other digital output devices.

3. What is meant by non-floating inputs?
Answer: Non-floating inputs share a common ground reference, which means that all inputs are referenced to the same potential. This configuration is typically used in applications where isolation between inputs is not critical.

4. Is this module suitable for new installations?
Answer: The 6ES5420-4UA12 is primarily available as a spare part and is more suitable for maintaining and repairing existing SIMATIC S5 systems rather than new installations.

5. What types of applications can this module be used in?
Answer: This digital input module is suitable for various industrial applications, including process control, machine automation, and systems where monitoring of on/off states is required.

6. Does the module have any status indicators?
Answer: Yes, the module is equipped with LED indicators for each input channel to provide visual feedback on the status of the inputs.
