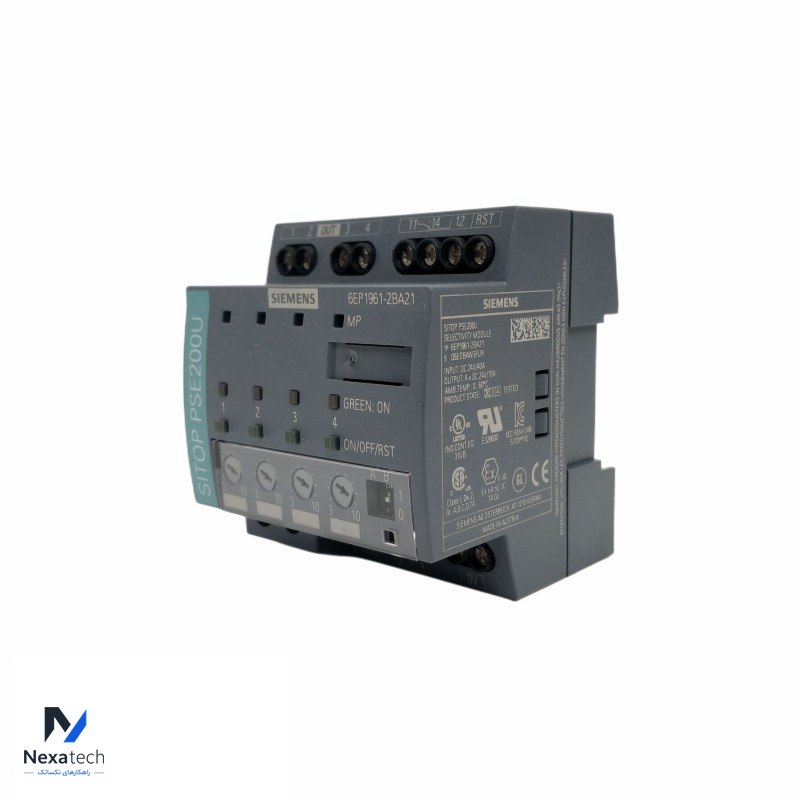

Siemens 6EP1961-2BA21 Input / Output Module

SITOP PSE200U 10 A selectivity module 4-channel input: 24 V DC/40 A output: 24V DC/4x 10 A threshold adjustable 3-10 A with common signaling contact

input：
type of the power supply network ：Controlled DC voltage
supply voltage at DC rated value ：24 V
input voltage at DC: 22 ... 30 V
overvoltage overload capability :35 V
input current at rated input voltage 24 V rated value: 40 A

output：
voltage curve at output: controlled DC voltage
formula for output voltage： Vin - approx. 0.2 V
relative overall tolerance of the voltage note： In accordance with the supplying input voltage
number of outputs： 4
output current up to 60 °C per output rated value： 10 A
Adjustable output current ：3 ... 10 A
type of response value setting： via potentiometer
response delay maximum： 5 s
product feature parallel switching of outputs： No
type of outputs connection： Simultaneous connection of all outputs after power up of the supply voltage >20 V, delay time of 25 ms, 100 ms or adjustable "load optimised" via DIP switch for sequential connection
