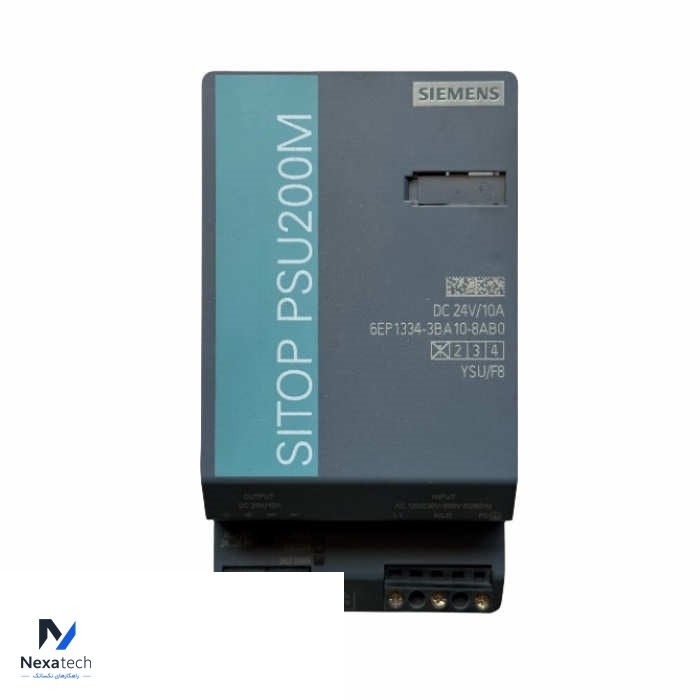

SIEMENS 6EP1334-3BA10 power supply

Input Type of the power supply network: 1-phase and 2-phase AC
Overvoltage overload capability: 1300 Vpeak, 1.3 ms
Line frequency: 50/60 Hz
Line frequency range: 47 ... 63 Hz
Current limitation of inrush current at 25 °C: Maximum 35 A
Output voltage at DC rated value: 24 V
Adjustable output voltage: 24 ... 28.8 V
Relative overall tolerance of the voltage: 3 %
Residual ripple: Maximum 50 mV
Response delay: Maximum 1 s
Supplied active power: Typical 240 W
Design of the overvoltage protection: < 35 V
Leakage current: Maximum 3.5 mA
Ambient temperature during operation: -25 ... +70 °C
Ambient temperature during transport: -40 ... +85 °C
