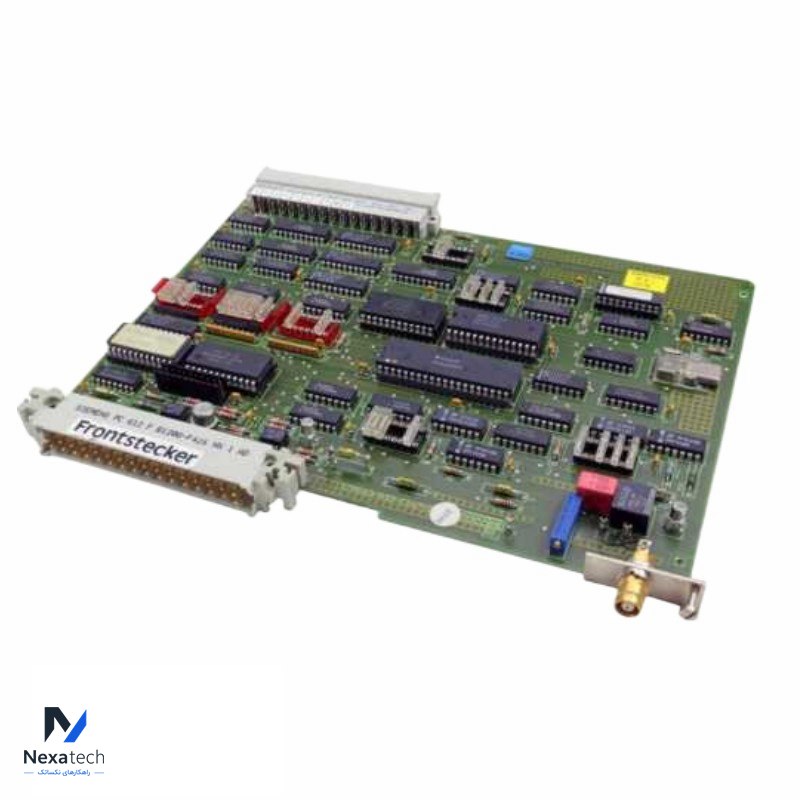

SIEMENS 6DS1300-8AB Interface module

The SIEMENS 6DS1300-8AB is an interface module designed to support communication between control systems and a black & white monitor, utilizing a 20-mA current loop interface (Linienstromschnittstelle). Here are the key features and technical aspects of this interface module:

Specifications:
Interface Type: 20-mA current loop interface.
Monitor Compatibility: Specifically designed for use with black & white monitors, typically employed in older control systems or legacy display setups.
Application: Suitable for environments where visual monitoring of control processes is required, typically in process control and industrial automation systems.
Mounting: Typically mounted in a rack or system housing alongside other control and interface modules.

Common Questions:
What type of monitors does the 6DS1300-8AB support?

It is designed for use with black & white monitors, commonly used in older industrial control setups.
What is the function of the 20-mA current loop interface?

The 20-mA current loop is a robust communication method used for transmitting digital signals over long distances with high resistance to electrical noise. It is commonly used in industrial environments to connect remote devices such as monitors, terminals, or control panels.

What are typical use cases for this interface module?

It is often used in legacy control systems, especially in process industries where real-time monitoring of critical processes is necessary. The interface allows data to be displayed on monitors for operators to view and make decisions based on system performance.
Is this module still in use today?

The 6DS1300-8AB is primarily found in older systems, as modern control systems typically use more advanced display technologies and communication interfaces. However, it is still valuable for maintaining and operating legacy systems where replacement or modernization is not feasible.

What kind of systems is this module compatible with?

It is typically compatible with Siemens legacy control systems and may be used in industries like manufacturing, oil & gas, and power generation where older automation systems are still in operation.
Is this module part of a specific Siemens series?

The 6DS series modules were part of Siemens' early process control and automation systems, especially within the S5 automation platform.
