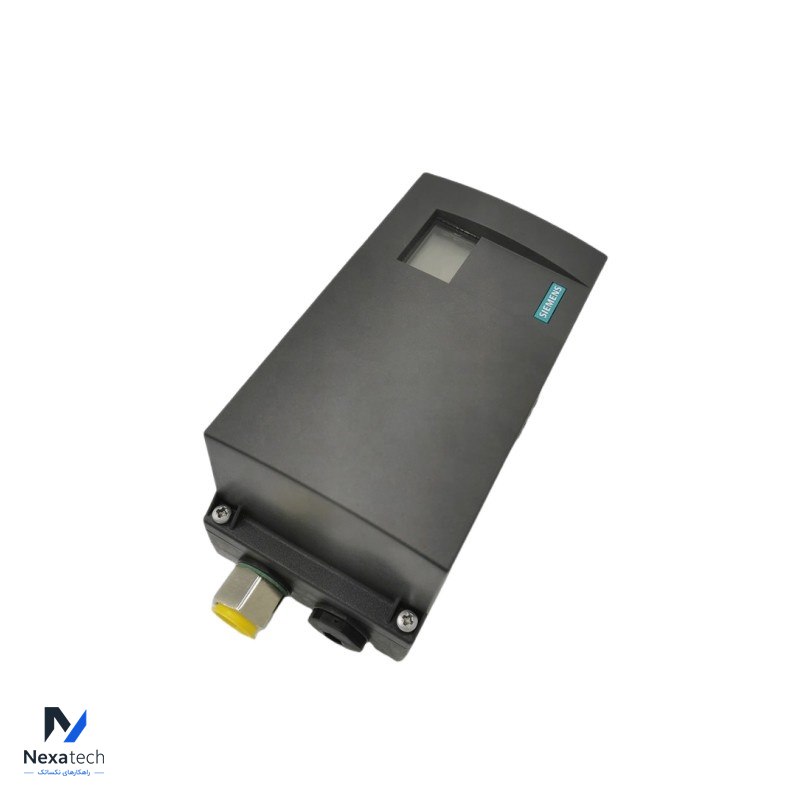

Name: SIEMENS 6DR5220-0EN00-0AA0 Electropneumatic positioner
Brand: Siemens
SKU: 6DR5220-0EN00-0AA0
Availability: InStock

Specification
Brand Name	SIEMENS
Model Number	6DR5220-0EN00-0AA0
Alternate Part Number	6DR5220-0EN00-0AA0
Condition	100% Original
Dimensions	21.8x9.8x11cm
Description	Electropneumatic positioner
Weight	1.06kg
Warranty	12 Months

The SIEMENS 6DR5220-0EN00-0AA0 is part of the SIPART PS2 Smart Electropneumatic Positioner series, which is widely used for controlling pneumatic actuators in industrial settings. This particular model is designed to offer precise and reliable positioning control for pneumatic linear and part-turn actuators. Here’s an overview of the key features and specifications:

Key Features:
Positioner Type:
SIPART PS2 Smart Electropneumatic Positioner
Double-acting, meaning it can control actuators that require air supply for both directions of movement.
Input Signal:
Supports a 4...20 mA signal (3/4-wire connection), which is standard for industrial control systems.

Communication Protocol:
Equipped with HART communication, allowing easy integration into modern process control systems and enabling diagnostics and remote communication.
Ex/nEx Protection:
Suitable for explosive environments with intrinsic safety (Ex i) and non-intrinsically safe (nEx) protections, making it compliant with various hazardous area standards.
Enclosure:
Comes with a polycarbonate enclosure that offers durability in industrial settings. Polycarbonate provides impact resistance and protection against harsh environmental conditions.
Actuator Compatibility:
Designed for pneumatic linear and part-turn actuators, providing versatility in its applications.
Thread Connections:
Electrical connection: 1/2" NPT
Pneumatic connection: 1/4" NPT
Documentation:
Includes brief instructions in English, German, and Chinese, ensuring accessibility for a global workforce.

Common FAQs:
What type of actuators can this positioner control?
It is designed to control pneumatic linear and part-turn actuators. It can be used in double-acting systems where air pressure is required for both forward and return movements.

Does this model support HART communication?
Yes, the positioner supports HART communication, enabling advanced diagnostics and remote configuration.

Is it suitable for explosive environments?
Yes, the positioner is rated for use in intrinsically safe (Ex i) and non-intrinsically safe (nEx) environments, making it compliant for hazardous areas.

What happens if there is a failure in electrical power?
For single-acting actuators, the fail-safe feature will depressurize the actuator in the event of electrical power loss, bringing the system to a safe state.

What additional accessories are needed for installation?
Depending on the setup, you may require the SITRANS I200 isolator (sold separately), and possibly other accessories like feedback modules or gauges if your application demands those functionalities.

Can I get a version with manometer blocks and other options?
This particular model does not include a manometer block, venting gauge block, or booster. However, those components are available with other versions of the SIPART PS2 series.
