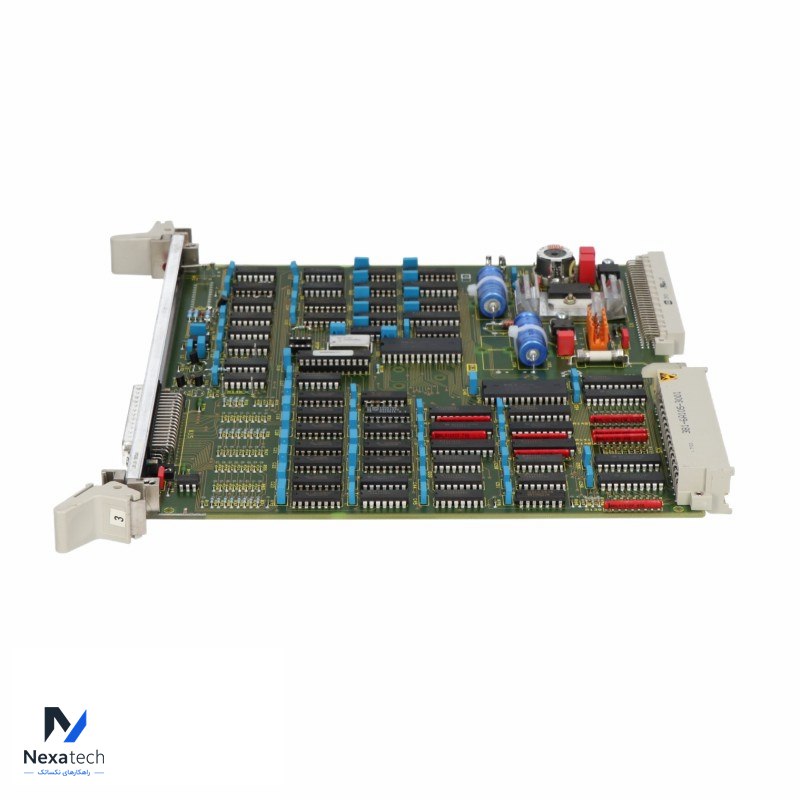

Siemens 6DP1661-8AA Digital Output Module

The Siemens 6DP1661-8AA Digital Output Module is a versatile component designed to provide discrete output signals for controlling external devices in automation systems. It's commonly used in industrial applications to drive relays, solenoids, valves, and other digital actuators.

The terminal module is wired, and there are other terminal modules on the right and left. A terminal module in the ET 200S distributed I/O system can only be removed when there is a clearance of around 8 mm to the adjacent terminal modules (you achieve this clearance by moving the adjacent

modules)

1. Switch off the supply voltage on the terminal module and, if applicable, t
he power module
2. Disconnect the wiring on the terminal module
3. Removal from the right: Use a screwdriver to push the locking mechanism on the previous terminal module/interface module (on the left) down until the mechanism stops, and move the terminal module to the right Removal from the left: Use a screwdriver to push the locking mechanism on the terminal module down until the mechanism stops, and move the terminal module to the left.note:The locking mechanism is under the terminal module.
4. With the locking mechanism depressed, tip the terminal module so that it comes off the rail
