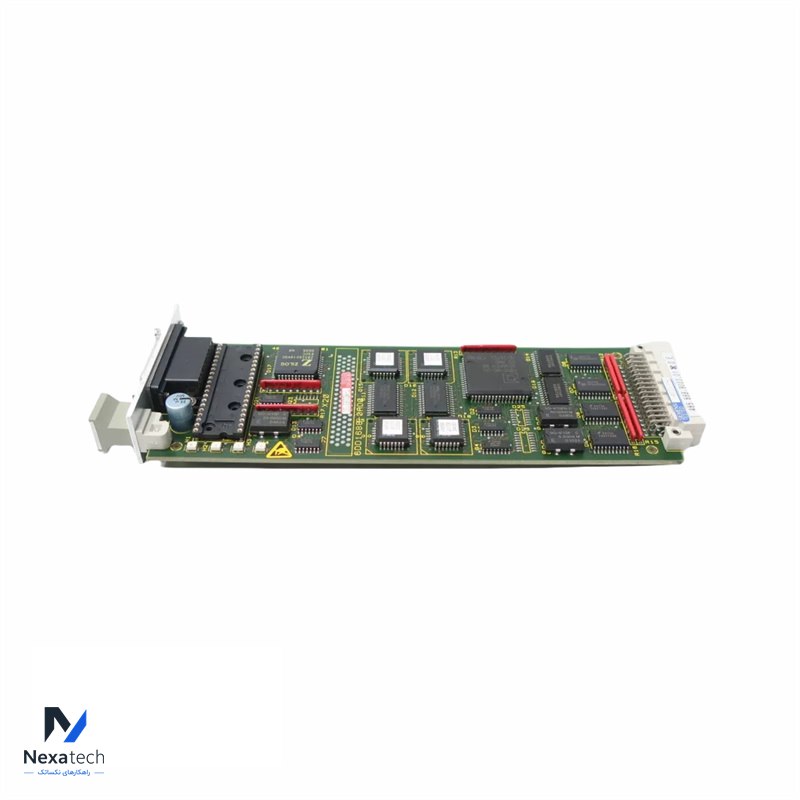

SIEMENS 6DD1688-0AD0 COMMUNICATION SUBMODULE

Here are some common questions and answers regarding the SIEMENS 6DD1688-0AD0 communication submodule to help you better understand its functions and applications:

What is the main function of the SIEMENS 6DD1688-0AD0 communication submodule?

The primary function of this module is to provide a communication interface between devices and the control system. It facilitates data exchange between different modules in the SIMATIC S5 or related automation systems, ensuring reliable communication within the control system.

Which communication protocols does this module support?

The 6DD1688-0AD0 typically supports Profibus or MPI (Multi-Point Interface), which are proprietary Siemens communication protocols. It is used for data transmission between PLCs, HMIs, SCADA, and other systems.
Which PLCs is this module compatible with?

The 6DD1688-0AD0 communication submodule is usually compatible with SIMATIC S5 series PLCs. It may also work with some early S7 series devices, depending on the system configuration and protocol used.

How do you install the SIEMENS 6DD1688-0AD0 communication submodule?

This module is typically installed in a rack slot within a control cabinet or a modular frame of an automation system. The specific installation steps should be referenced in the module's installation manual to ensure proper connection and configuration.
How do you configure the 6DD1688-0AD0?

Configuring the module typically requires Siemens programming tools such as STEP 5 or STEP 7 (depending on the PLC model). Through these tools, communication parameters, addresses, baud rates, and other settings can be configured.

What are the common faults and troubleshooting methods?

Communication Interruptions: Check cable connections, port settings, and protocol matching to ensure proper communication.
Module Not Responding: This can be resolved by checking the power supply, restarting the module, or performing a firmware update. Diagnostic tools can also be used to check for error codes.
Does the 6DD1688-0AD0 support hot-swapping?

Typically, this module does not support hot-swapping. To avoid damaging the module or causing system failures, the system power should be turned off before replacing or installing it.
What is the operating temperature range of this module?

The 6DD1688-0AD0 usually operates within a temperature range of 0°C to 60°C. The working environment must be within the specified range to ensure the device's stability and lifespan.
