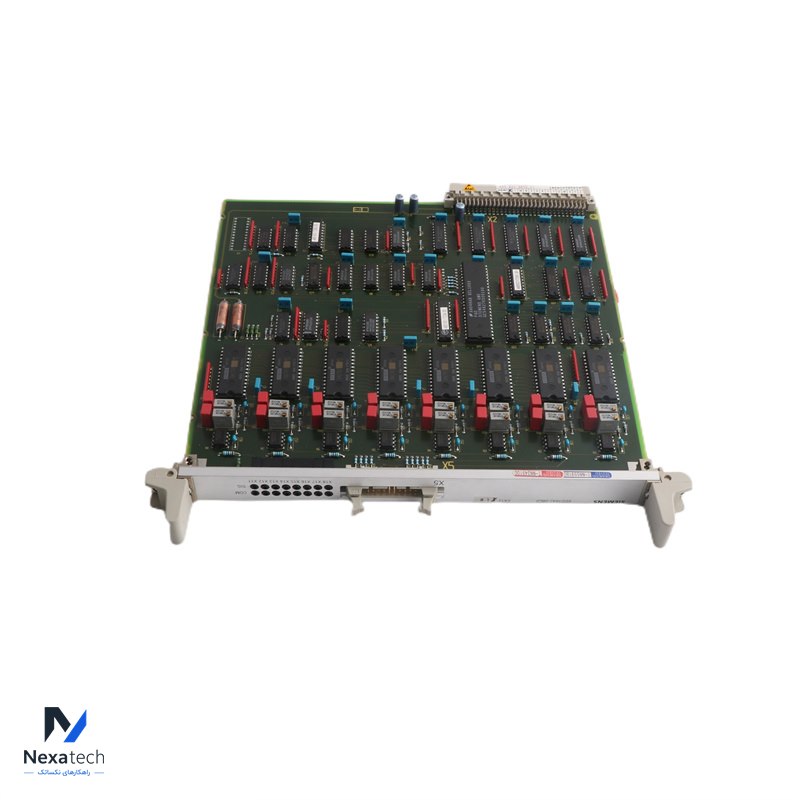

Siemens 6DD1642-0BC0 EA12 Analog Output Module

Common Questions:
Question: What is the main function of the 6DD1642-0BC0 EA12 module?
Answer: The 6DD1642-0BC0 is an analog output module that converts digital signals from a control system into analog output signals, typically used to control actuators, valves, or other equipment that require analog control signals.

Question: What output ranges are supported by this module?
Answer: The module supports configurable output ranges, including 0-10V, 0-20mA, or 4-20mA, depending on the needs of the specific application.

Question: How many analog output channels does the 6DD1642-0BC0 have?
Answer: The module typically provides 8 analog output channels.

Question: Is this module compatible with the Siemens S7 series?
Answer: The 6DD1642-0BC0 is designed for use with the older SIMATIC S5 series. While it is not directly compatible with the S7 series, converters or communication interfaces might be used to bridge the two systems if needed.

Question: What is the resolution of the analog outputs?
Answer: The module offers 12-bit resolution, which provides precise control for various industrial processes.

Question: What is the power requirement for this module?
Answer: The 6DD1642-0BC0 operates on a 24V DC power supply, which is standard for industrial control systems.

Question: Can the module operate in extreme environmental conditions?
Answer: The operating temperature range for the 6DD1642-0BC0 is 0°C to 60°C, making it suitable for most industrial environments. It can be stored at temperatures ranging from -40°C to 85°C.

Question: What kind of applications is this module used for?
Answer: This analog output module is typically used in industrial automation applications such as process control, manufacturing systems, and energy management, where precise control of analog devices (e.g., valves, motors) is required.
