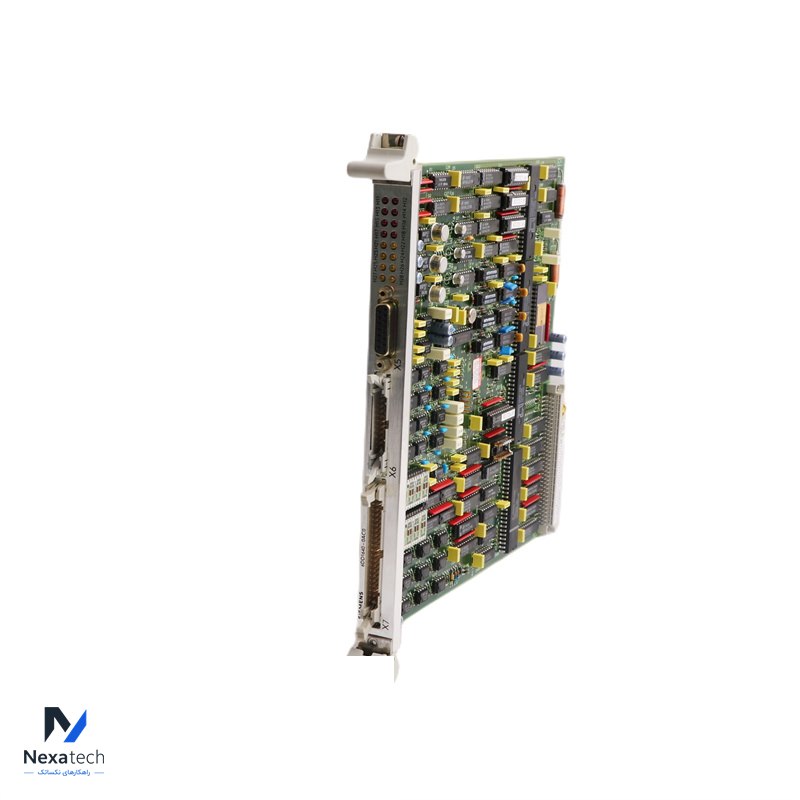

SIEMENS 6DD1640-0AC0 EM11 I/O Module

The SIEMENS 6DD1640-0AC0 EM11 I/O Module is part of the SIMATIC S5 automation system and is used for digital input/output processing in industrial automation environments. Here's an overview of the module's key details:

Specifications:
Input/Output Channels: The exact number of input and output channels varies by specific model configurations. This module is used to interface multiple external signals into the control system.
Input Voltage: The module generally supports standard industrial voltage levels (e.g., 24V DC) for digital inputs and outputs.
Communication Interface: It is typically integrated into the backplane of a Siemens S5 system, using proprietary communication protocols to interface with the CPU.
Response Time: Designed for real-time process control with low latency in handling input/output signals.

Installation:
The 6DD1640-0AC0 module is installed in a rack system along with other S5 modules. Proper configuration in the system is required to ensure accurate communication between the I/O module and the control processor (CPU).

Common Questions:
What kind of devices can be connected to this I/O module?

The module can interface with digital devices such as proximity sensors, switches, relays, and actuators that operate within the module’s input/output voltage range.
How do you configure the 6DD1640-0AC0?

Configuration is typically done through Siemens’ programming tools, such as STEP 5, where you can assign addresses and configure parameters for the I/O channels.
Is the module hot-swappable?

Generally, modules in the SIMATIC S5 system, including the 6DD1640-0AC0, are not hot-swappable, meaning power must be shut down before installing or removing the module.

What is the operating temperature range for the module?

The typical operating temperature range is 0°C to 60°C, suitable for most industrial environments.
Does the module support redundancy?

Redundancy support depends on the overall system configuration rather than the module itself. However, it can be part of a redundant system if configured within a redundant S5 setup.
