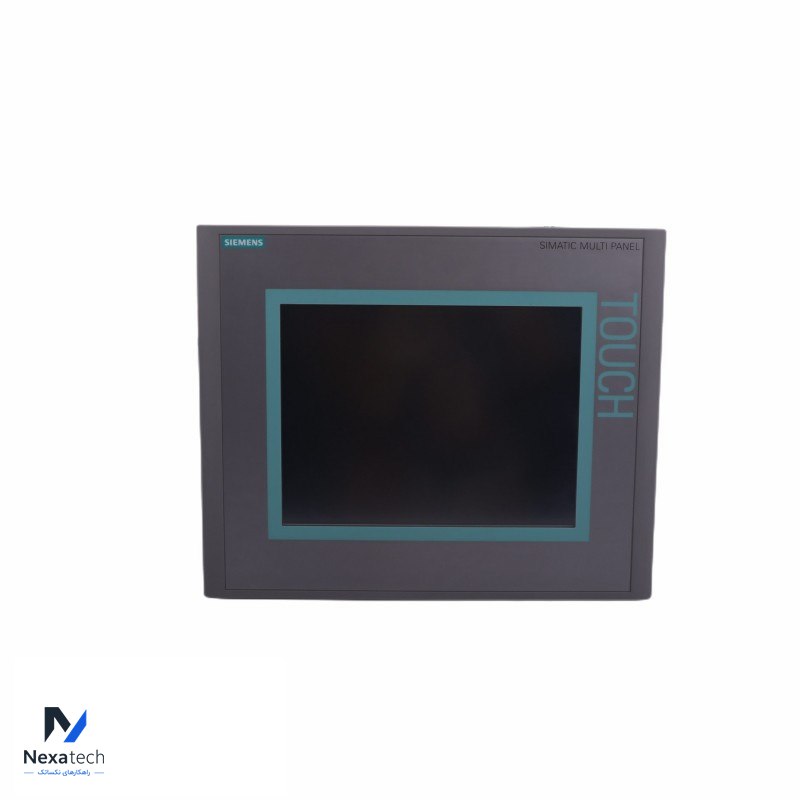

Siemens 6AV6643-0CD01-1AX1 Operator Interface Panel

Siemens 6AV6 643-0CD01-1AX1 SIMATIC MP 277 Multi Panel with retentive memory, Operator Interface Terminal, 10.4-inch, Color, Touchscreen, ARM CPU, 6MB Configuring Memory, 1 x 12 Mbit/s RS-422/485 Interface Port (MPI/DP/PPI), 1 x 10/100 Mbit/s RJ-45 Ethernet Port (IE/PN), 1 x SD/Multi Media Card Slot, 2 x USB Ports, 640x480 TFT LCD with 65K Colors, Windows CE Operating System, configurable with WinCC Flexible Standard 2005 SP1 and higher, 24V DC Power.

Description:

Manufacturer：Siemens

Range：SIMATIC HMI

Subrange：Multi panels 270 series

Type of product：Multi panels

Supply voltage：24V DC

FAQ:

1. What communication protocols does this panel support?

The 6AV6643-0CD01-1AX1 supports PROFIBUS DP, PROFINET (Ethernet interface), MPI (Multi-point Interface), and RS-422/RS-485 serial communication.

2. What are the specifications of the display?

The panel features a 5.7-inch color STN display with a resolution of 320 x 240 pixels (QVGA), supporting 4,096 colors.

3. Is the panel operable via touch screen?

Yes, the panel is equipped with a resistive touch screen and supports both touch and keypad operations.

4. How can the panel be programmed?

The panel can be configured using WinCC flexible software, which allows for project development and customization.

5. Which PLCs are supported?

The panel supports various Siemens PLCs such as S7-300, S7-400, S7-1200, and S7-1500, and communicates with them via PROFIBUS, PROFINET, and MPI.
