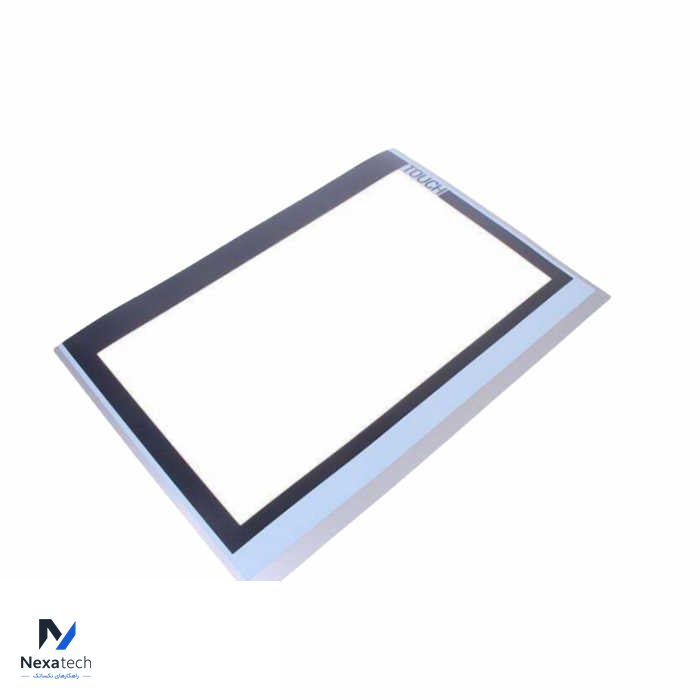

Siemens 6AV2124-0UC02-0AX0 Comfort Panel

The Siemens 6AV2124-0UC02-0AX0 Comfort Panel is part of the SIMATIC HMI (Human-Machine Interface) series, specifically the TP1900 Comfort model. This panel is designed for industrial applications, offering a user-friendly interface for monitoring and controlling processes.

Product Specifications:
Model: 6AV2124-0UC02-0AX0
Type: TP1900 Comfort Panel
Display:
19" TFT widescreen
Resolution: 1280 x 1024 pixels
Aspect Ratio: 16:9
Color Depth: 16 million colors

Touch Operation: Multi-touch capability for intuitive operation
Operating System: Windows CE 6.0
Configuration Memory: 24 MB for application data and settings
Interfaces:
PROFINET: High-speed industrial Ethernet communication
MPI/PROFIBUS DP: Additional interfaces for communication with various devices and controllers
Software Compatibility: Configurable with WinCC Comfort V11 SP2 and higher
Mounting: Panel mountable for easy installation in control cabinets or operator stations
Environmental Rating: IP65 front panel for protection against dust and water
Operating Temperature Range: 0°C to 50°C

Common Questions:
Question: What is the primary function of the Siemens 6AV2124-0UC02-0AX0 Comfort Panel?
Answer: The TP1900 Comfort Panel serves as an HMI for industrial automation applications, allowing operators to monitor and control processes through a user-friendly touchscreen interface.

Question: What is the display resolution of the TP1900 Comfort Panel?
Answer: The panel features a resolution of 1280 x 1024 pixels on its 19" TFT display.

Question: What type of communication interfaces does this panel support?
Answer: The panel supports PROFINET for high-speed Ethernet communication and MPI/PROFIBUS DP interfaces for connection to various Siemens controllers and devices.

Question: Can the TP1900 Comfort Panel be used in harsh environments?
Answer: Yes, the panel has an IP65 rating for its front panel, making it resistant to dust and water, suitable for use in industrial environments.

Question: What operating system does the Comfort Panel use?
Answer: The Siemens TP1900 Comfort Panel runs on Windows CE 6.0, providing a stable platform for HMI applications.

Question: How much configuration memory does the panel have?
Answer: The TP1900 Comfort Panel has 24 MB of configuration memory available for storing application data and settings.

Question: What is the aspect ratio of the display?
Answer: The display has a 16:9 aspect ratio, providing a widescreen viewing experience.

Question: What software is compatible with the TP1900 Comfort Panel?
Answer: The panel is configurable with WinCC Comfort V11 SP2 and higher, allowing for custom application development and configuration.

Question: Is it possible to use multi-touch gestures on this panel?
Answer: Yes, the TP1900 Comfort Panel supports multi-touch operations, enhancing the user experience with intuitive controls.

Question: What mounting options are available for this panel?
Answer: The panel is designed for panel mounting, making it easy to install in control cabinets or on operator stations.
