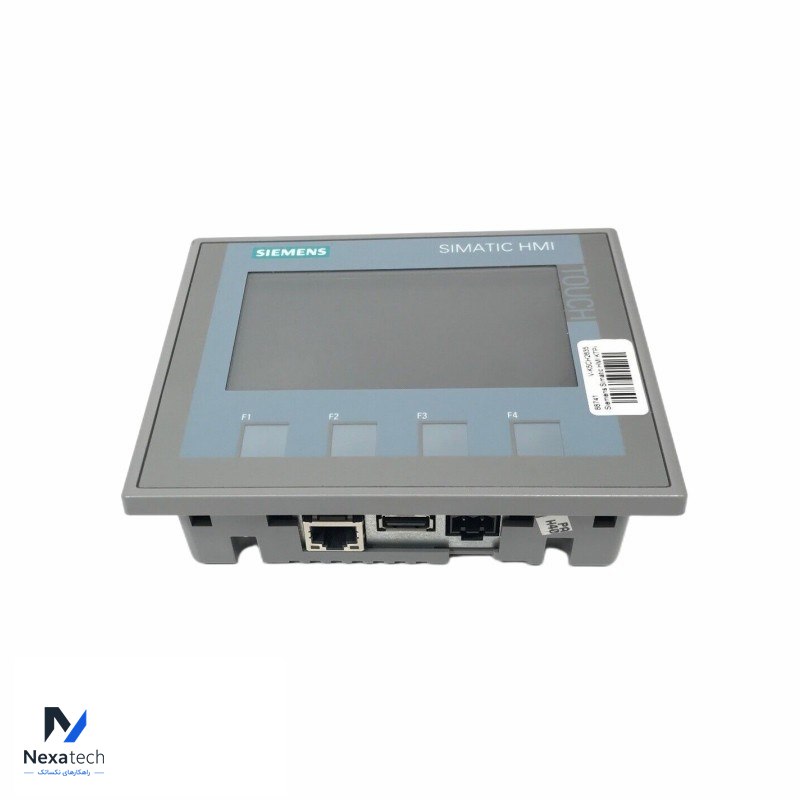

SIEMENS 6AV2123-2DB03-0AX0 Basic Panel

Name: SIEMENS 6AV2123-2DB03-0AX0 Basic Panel
Brand: Siemens
SKU: 6AV2123-2DB03-0AX0
Availability: InStock

پارت‌نامبر: 6AV2123-2DB03-0AX0

توضیحات محصول

Basic Panel

Specification
Brand Name	Siemens	MTBF Backlighting (at 25 °C): 20,000 h Supply Voltage Rated Value (DC): 24 V Current Consumption (Rated Value): 125 mA Starting Current Inrush I²t: 0.2 A²·s Active Power Input (typ.): 3 W Memory Available for User Data: 10 Mbyte Number of Industrial Ethernet Interfaces: 1 IP Protection (Rear): IP20 Ambient Temperature During Operation: 0 °C to 50 °C Ambient Temperature During Storage/Transportation: -20 °C to 60 °C Relative Humidity During Operation: Max. 90%, no condensation



Model Number	6AV2123-2DB03-0AX0
Alternate Part Number	6AV2123-2DB03-0AX0
Condition	100% Original
Dimensions	14x11.4x4cm
Description	Basic Panel
Weight	0.36 kg
Warranty	12 Months
