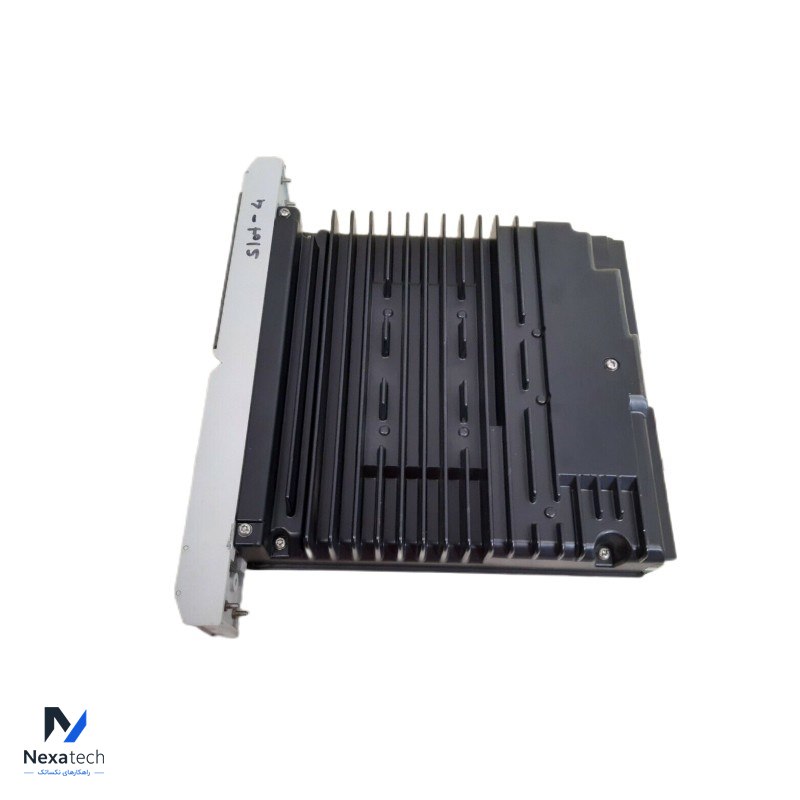

SIEMENS 39SAMCAN 16133-71/13 Standard Analog Module

The SIEMENS 39SAMCAN 16133-71/13 is a Standard Analog Module designed for use with the Moore APACS control system.

Specifications:
Input Types:
The module typically supports various types of analog inputs, such as voltage (e.g., ±10V) and current (e.g., 4-20 mA) signals. Specific input ranges should be referenced in the module's manual.
Number of Channels: The exact number of input channels can vary, but standard analog modules often provide multiple input options (e.g., 8 or 16 channels).
Resolution: The module generally offers high-resolution data acquisition, typically around 12 to 16 bits.
Signal Processing:
Capable of processing real-time signals for monitoring and control tasks within the APACS system.

Functionality:
Signal Conversion: Converts analog signals from field devices (like sensors and transmitters) into digital data for the control system.
Data Processing: Performs data processing for control algorithms and monitoring applications in industrial automation.
Integration: Seamlessly integrates with other modules in the APACS system, facilitating comprehensive data acquisition and control.

Common Questions:
What types of analog inputs does the module support?

The module supports standard analog signals such as voltage and current, typically including ranges like ±10V and 4-20 mA.
How is the module installed in an APACS system?

Installation involves mounting the module within the APACS rack and connecting it to the appropriate analog signal sources.
Is configuration required for this module?

Yes, configuration may be necessary to set input ranges and calibrate the module using the appropriate software tools.
What diagnostic features does this module offer?

It usually includes diagnostic capabilities to monitor signal integrity and detect faults.
What is the expected operating temperature range?

Typically, the operating temperature range is between 0°C to 60°C, but specific details should be confirmed in the technical documentation
