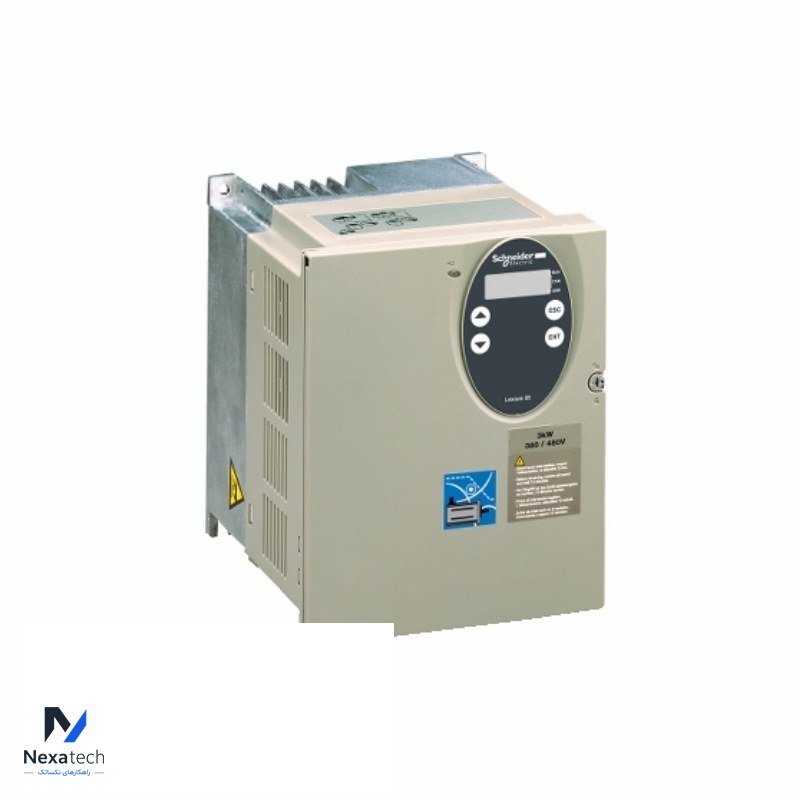

Name: Schneider LXM05AD28M2 motion servo drive
Brand: Schneider Electric
SKU: LXM05AD28M2
Availability: InStock

مشخصات فنی

Specification
Brand Name	Schneider	Network Number of Phases: Single phase Nominal Power: 2.5 kW at 4 kHz Analogue Input Number: 2 Power Supply Voltage Limits: 170…264 V Power Supply Frequency Limits: 47.5…63 Hz Inrush Current: 60 A Maximum Leakage Current: 30 mA Braking Current: 50 mA Communication Port Protocol: CANopen, Motionbus, Modbus Maximum Nodes Number: 31 for Modbus Input Resistance: 5 kOhm Ambient Air Temperature for Operation: 0…50 °C Ambient Air Temperature for Storage: -25…70 °C



Model Number	LXM05AD28M2
Alternate Part Number	LXM05AD28M2
Condition	100% Original
Dimensions	23.7x6.8x27cm
Description	motion servo drive
Weight	2 kg
Warranty	12 Months

Moore Automation understands the criticality of your requirement and works towards reducing the lead time as much as possible.
The LXM05AD28M2 motion servo drive is brand new and original.
To avail our best deals for LXM05AD28M2 motion servo drive, contact us and we will get back to you within 24 hours.

Frequently Asked Questions (FAQ):

1.Which communication protocols are supported by the Schneider LXM05AD28M2?

The Schneider LXM05AD28M2 motion servo drive supports CANopen, Motionbus, and Modbus protocols.

2.What is the maximum number of nodes for Modbus on the Schneider LXM05AD28M2?
The maximum number of nodes for Modbus on the Schneider LXM05AD28M2 motion servo drive is 31.

3.What type of phase does the Schneider LXM05AD28M2 motion servo drive support?
The Schneider LXM05AD28M2 motion servo drive supports single-phase operation.

Application:
LXM05AD28M2 motion servo drive from Schneider Electric’s Lexium 05 series is widely used in automation where accurate position, speed, and torque control are needed. Typical industries include packaging machinery, material handling and conveyor systems, pick-and-place and light motion applications, printing, and electronics manufacturing.
