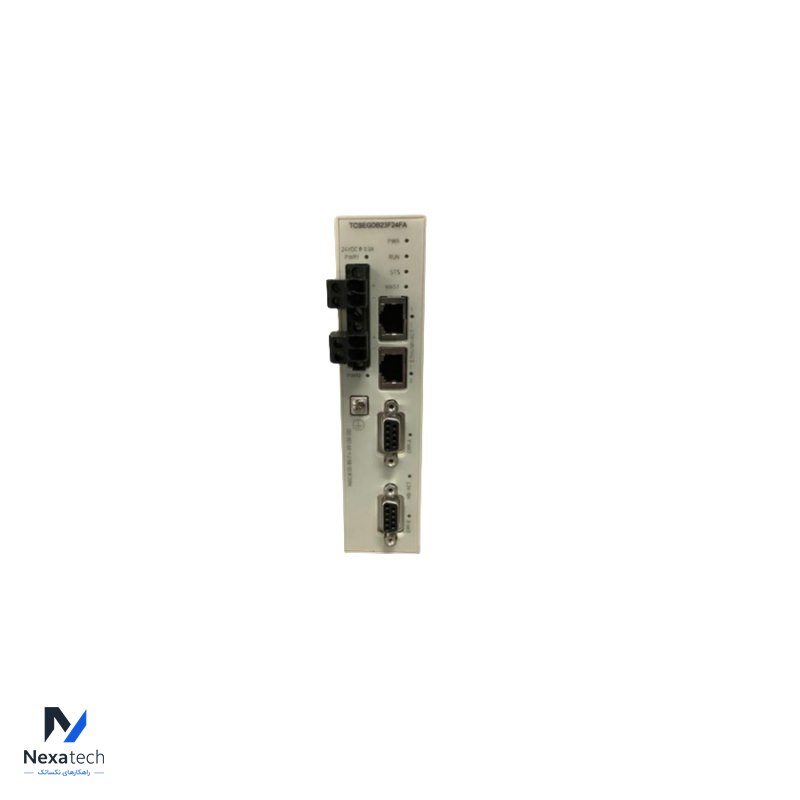

Schneider Electric TCSEGDB23F24FA Proxy module

The Schneider Electric TCSEGDB23F24FA is a Modbus Plus Proxy Module from the Modicon M340 range, designed to enable communication between Modbus TCP/IP networks and Modbus Plus devices. This module plays a critical role in allowing existing Modbus Plus devices to communicate with modern PLCs without modifying their application software, facilitating integration in industrial automation systems.

Key Features and Specifications:
Product Type: Modbus Plus Proxy Module
Number of Slaves Supported: Up to 128 slaves
Interfaces:
2 Ethernet TCP/IP ports (RJ45, 10/100BASE-T) for Modbus TCP communication
2 Modbus Plus ports (SUB-D 9 connector, RS485) for Modbus Plus communication
Power Supply:
External power supply with current consumption of 300 mA at 24V DC
Mounting Options:
Can be mounted on a rack or DIN rail
Integrated Connections: Ethernet and Modbus Plus interfaces for seamless integration in automation systems
Enclosure and Coating:
White coating for industrial environments

Standards and Certifications:
UL 508
CSA 22.2
cUL
EMI EN 55011
EN 61131-2
C-Tick
Compatibility: Fully compatible with Modicon M340 Programmable Logic Controllers (PLCs)
Dimensions: Compact form factor, making it suitable for space-constrained installations
Applications: Suitable for use in various industries, including process industries, renewable energy, water treatment, cement, manufacturing, infrastructure, and machinery applications.
Additional Information:
Connectivity: The module allows seamless integration of Modbus Plus devices into a modern Ethernet-based architecture via Modbus TCP, enhancing the flexibility of legacy systems.
Installation: It comes with a mounting plate and two front-mounted power supply connectors for easy installation and integration into the system.
This module is ideal for industrial automation environments that require robust, real-time communication between new and legacy devices.
