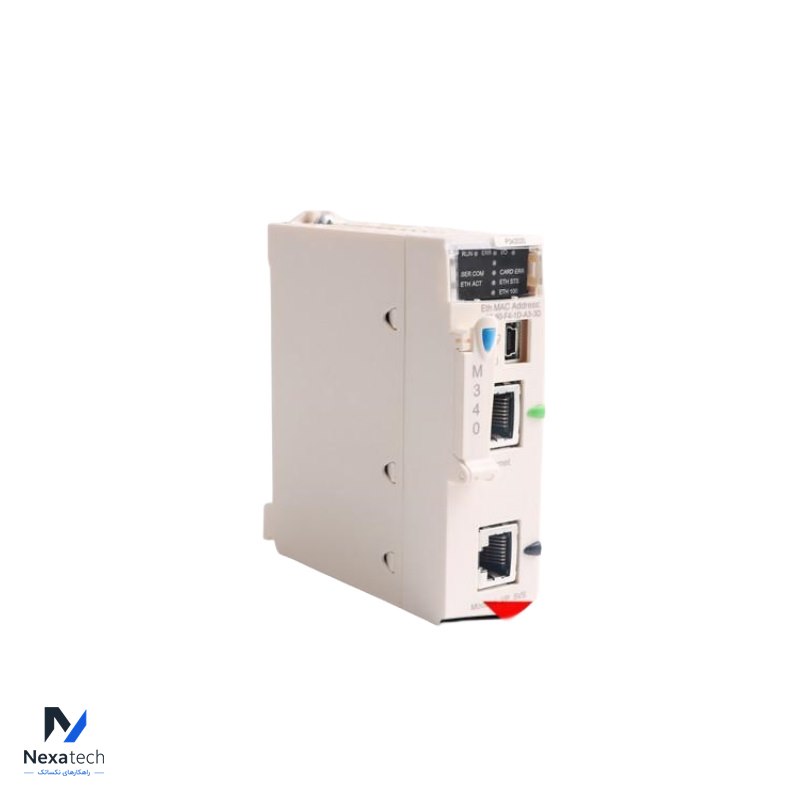

Schneider Electric BMXP341000 Processor module

The Schneider Electric BMXP341000 is a processor module from the Modicon X80 series, part of the Modicon M340 Programmable Automation Controllers (PAC). It is designed for managing automation processes and supports a wide range of industrial applications. This processor module provides high-performance control for machine and process automation, and it offers a flexible, scalable solution for industrial environments.

Key Features and Specifications:
Product Type: Processor Module
Processor Type: Modicon M340 CPU
Clock Frequency: 37 MHz
Program Memory: 4096 KB (4 MB) of internal RAM
Number of Racks Supported: Up to 4 racks with remote I/O configurations
Number of Application-Specific Channels: 1024 discrete I/O, 256 analog I/O

Communication Ports:
1 x Ethernet port (10/100 Mbps) for communication with the network, supporting Ethernet Modbus TCP/IP protocol
USB port for programming and diagnostics
Data Logging: Can store data locally in memory for diagnostic and traceability purposes
Real-Time Clock: Integrated real-time clock for time-stamping and scheduling tasks
Operating Temperature: -25 to 70°C
Diagnostics: LED indicators for module status and communication
Compatibility:
Works with Modicon M340 expansion modules (I/O modules, communication modules)
Supports multiple protocols including Modbus TCP, Ethernet/IP, and Modbus RTU for communication with third-party devices

Memory Expansion: Supports external memory card for data and program storage
Backup and Redundancy: Capable of data backup with SD cards for enhanced data security
Power Supply: Operates with standard Modicon M340 power supplies
Applications:
Suitable for industrial automation tasks like machine control, process automation, infrastructure management, and energy applications.

Key Advantages:
Scalability: The processor is highly scalable, able to support a wide range of inputs and outputs for complex automation processes.
Real-Time Processing: The integrated real-time clock and fast communication ports make it suitable for applications that require precise control and real-time data management.
Reliability: The module is robust, designed for operation in harsh industrial environments with extended temperature ranges and high electromagnetic compatibility.
This processor module is ideal for use in medium-sized industrial automation projects, offering flexibility, performance, and ease of integration with both Schneider Electric and third-party devices.
