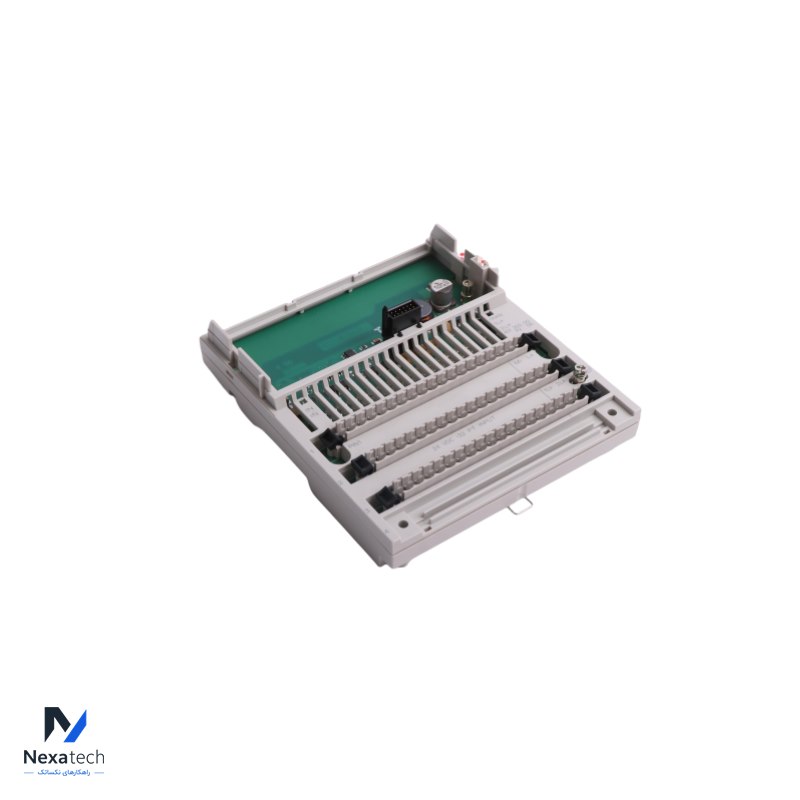

Schneider Electric 170ADI35000 Discrete input module

The Schneider Electric 170ADI35000 is a discrete input module that is part of the Modicon Momentum automation platform. This module is used for monitoring the state of discrete inputs in industrial control systems. Here are the key specifications:

Specifications:
Product Type: Discrete input module
Input Type: 32 points for 24 V DC inputs
Input Voltage: 24 V DC, positive logic (sink)
Number of Inputs: 32
Input Current: Typically 4 mA per input at 24 V DC
Response Time: 2 ms (filter)
Isolation: 500 V AC between channels and logic
Power Consumption: Low power consumption due to efficient design
Diagnostics: LED indicators for module and input status
Operating Temperature: -25 to 70°C

Mounting: DIN rail or panel mounting
Compatibility: Compatible with Modicon Momentum I/O bases and controllers
Application: Used in factory automation, process control, and other industrial applications.
