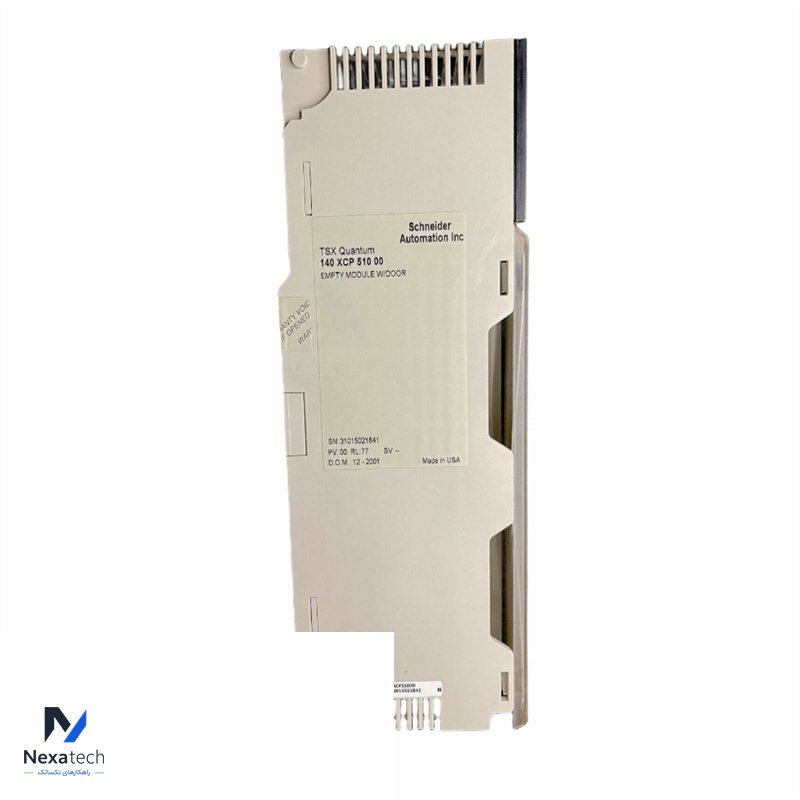

Schneider Electric 140XCP51000 Modicon Quantum - Dummy Module

Schneider Electric 140XCP51000 Modicon Quantum - Dummy Module
General Description:
Model: 140XCP51000
Type: Dummy Module
Function: Serves as a placeholder or fill-in module in a PLC rack or system configuration. It does not perform any active control or processing functions but is used to maintain the integrity and configuration of the system.

Technical Specifications:
Type: Dummy module, meaning it does not have active electronic components or functional I/O channels.
Compatibility: Specifically designed to fit into a Modicon Quantum PLC rack, maintaining system configuration and ensuring proper physical and electrical alignment.
Mounting: Fits into standard slots in the Modicon Quantum rack or backplane.
Dimensions: Typically matches the size and form factor of other modules in the Quantum series to ensure a proper fit.

Features:
System Integrity: Ensures that unused slots in the PLC rack are filled, which can be important for maintaining system stability and integrity.
Physical Fit: Designed to physically fit and align with the Modicon Quantum system, allowing for a seamless installation process.
No Active Functionality: Does not provide any electrical or control functions but helps in maintaining the physical structure and configuration of the PLC system.
Applications:
PLC Rack Configuration: Used in Modicon Quantum PLC racks to fill empty slots, especially during system expansions or reconfigurations.
Maintenance and Upgrades: Useful in maintaining system integrity when modules are removed or replaced, ensuring that all slots are occupied.

Installation and Maintenance:
Installation: Inserted into empty slots in the Modicon Quantum rack. No special tools or configurations are required.
Maintenance: No maintenance is required for the dummy module, as it does not have active components. It should be inspected periodically to ensure proper fit and alignment.
Compliance and Standards:
Certifications: Typically complies with the relevant standards and certifications for industrial automation equipment, ensuring safe and reliable operation within the Modicon Quantum system.
