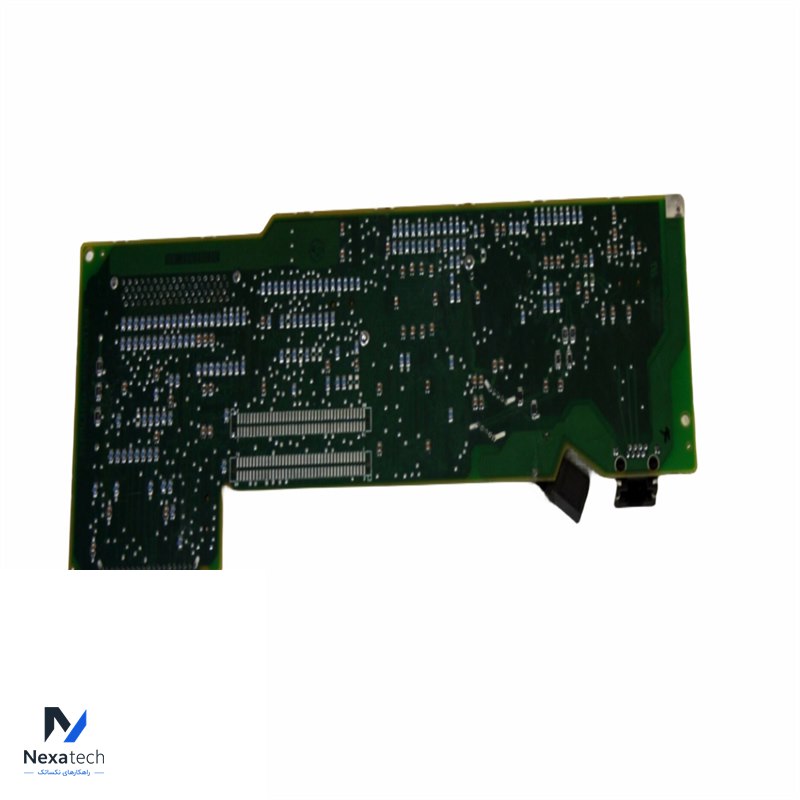

Schneider Electric 140NOE77100 Ethernet network TCP/IP module

The Schneider Electric 140NOE77100 is an Ethernet Network TCP/IP Module designed for use with the Modicon Quantum series of programmable logic controllers (PLCs). This module enables seamless communication over Ethernet networks, facilitating integration with various devices and systems.

Key Features and Specifications:
Product Type: Ethernet Network TCP/IP Module
Compatibility: Specifically designed for the Modicon Quantum PLC series
Communication Protocols: Supports Modbus TCP and other Ethernet-based protocols for data exchange
Number of Ports:
Typically includes 1 or more Ethernet ports (10/100 Mbps)

Data Transfer Rate: Up to 100 Mbps for high-speed communication
Configuration: Configurable using Schneider Electric software tools like Unity Pro or Concept
Web Server: Integrated web server for remote diagnostics and monitoring
Diagnostics: LED indicators for monitoring communication status and activity
Operating Temperature: -25 to 60°C, suitable for industrial environments
Power Consumption: Low power requirements, powered through the backplane
Mounting: Designed for easy installation on DIN rails or within control panels

Applications:
Industrial Automation: Enables communication between Modicon Quantum controllers and other devices in an automation network.
Data Acquisition: Facilitates data collection and monitoring from various sources over Ethernet.
Benefits:
Enhanced Connectivity: Provides flexible integration options with existing network infrastructure.
Reliability: Ensures stable and secure communication, improving overall system performance.
This module is essential for establishing Ethernet connectivity in Modicon Quantum applications, enhancing communication capabilities in industrial automation systems.
