Schneider Electric 140DDO35301 DISCRETE OUTPUT MODULE

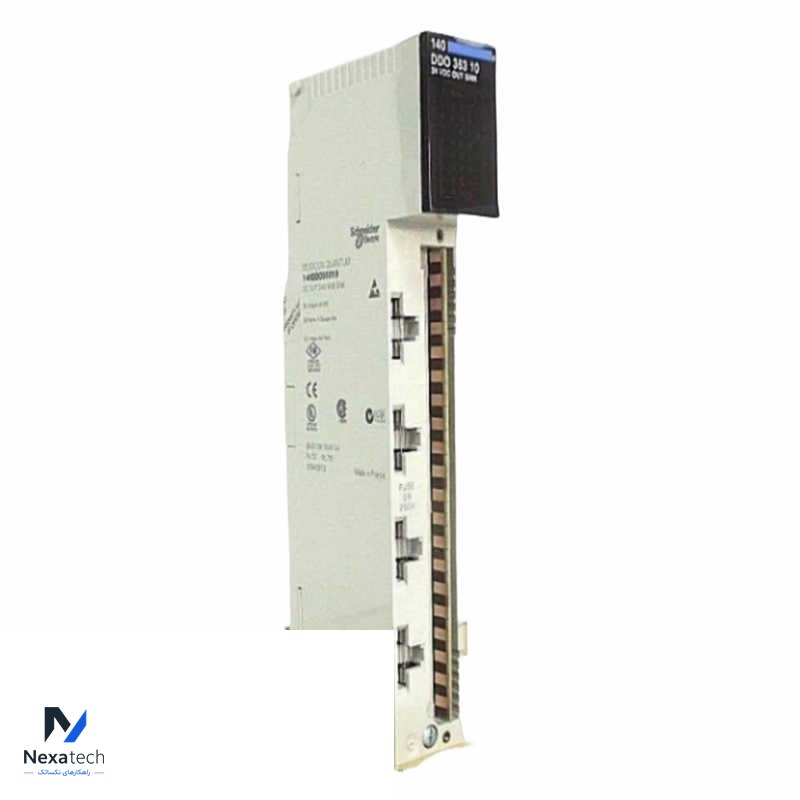

Schneider Electric 140DDO35301 Discrete Output Module
General Description:
Model: 140DDO35301
Type: Discrete Output Module
Function: Provides digital output signals to control external devices such as relays, actuators, and other digital components in an automation system.
Technical Specifications:
Number of Outputs: Typically 16 channels per module.
Output Type:
Relay Outputs: Can be used to drive relay-based outputs.
Transistor Outputs: Can be used for direct drive of loads with transistor outputs.

Output Voltage Rating:
DC Outputs: Commonly 24 VDC.
AC Outputs: If applicable, ratings may include 115/230 VAC.
Output Current Rating:
DC: Up to 2 A per channel, but varies depending on the specific module configuration.
AC: Typically up to 2 A per channel.
Isolation: Provides electrical isolation between output channels and internal circuitry to minimize interference and protect the module.
Response Time: Fast response time for reliable switching and control in real-time applications.

Features:
Modular Design: Part of the Modicon Quantum series, allowing easy integration and replacement within the PLC system.
Diagnostics: Includes diagnostic features to monitor the status of the outputs and detect any potential issues.
Flexibility: Supports various load types and configurations, making it adaptable to different control needs.
Reliability: Built to withstand industrial environments and ensure reliable operation over time.

Applications:
Industrial Automation: Used to interface with and control digital devices in automation systems.
Process Control: Suitable for applications that require discrete output signals to control process equipment.
Control Systems: Ideal for managing relays, actuators, and other digital devices in complex control systems.

Installation and Maintenance:
Mounting: Typically mounted on a DIN rail or within a control panel, fitting into standard slots in the Modicon Quantum rack.
Connection: Connects to field devices via terminal blocks or connectors as specified in the installation manual.
Maintenance: Designed for easy replacement and maintenance, with modular components that can be serviced with minimal system downtime.
Compliance and Standards:
Certifications: Complies with relevant industrial standards and certifications, such as IEC, UL, and CE, ensuring safe and reliable operation in industrial environments.
