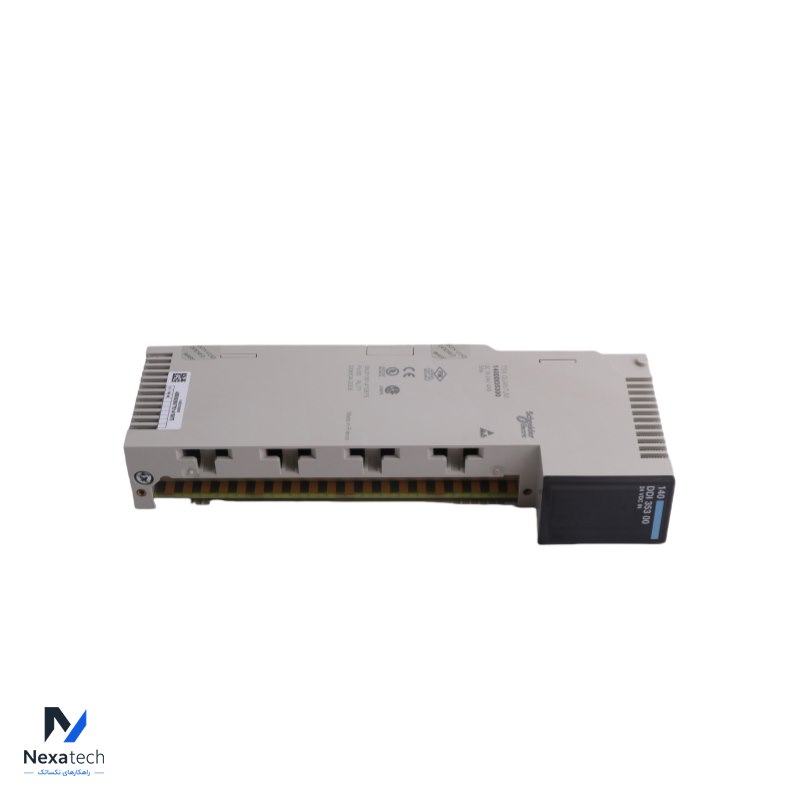

Schneider Electric 140DDI35300 Discrete input module

The Schneider Electric 140DDI35300 is a discrete input module from the Modicon Quantum series, designed for use in industrial control systems. It is a robust and reliable module used to monitor the state of discrete signals, typically from switches or sensors, and report their status to a Programmable Logic Controller (PLC).

Key Specifications:
Product Type: Discrete Input Module
Input Type: 32 input channels (24V DC, sink)
Voltage Type: 24 V DC
Input Voltage Range: 20.4 to 30 V DC
Input Current: 8 mA at 24 V DC per channel
Response Time:
1 ms (typical)

Fast switching and response time for high-speed applications
Diagnostics: LED indicators for input and module status
Isolation: 1780 V DC between channels and bus
Power Consumption:
Module power consumption: 3.2 W
Mounting: Standard DIN rail mounting
Operating Temperature:
-25 to 60°C
Dimensions: Standard Modicon Quantum form factor
Application: Factory automation, process control, machine monitoring, and other industrial applications requiring high-density digital inputs.
This module is typically used for monitoring discrete input signals in industrial processes where fast, reliable digital input is necessary.
