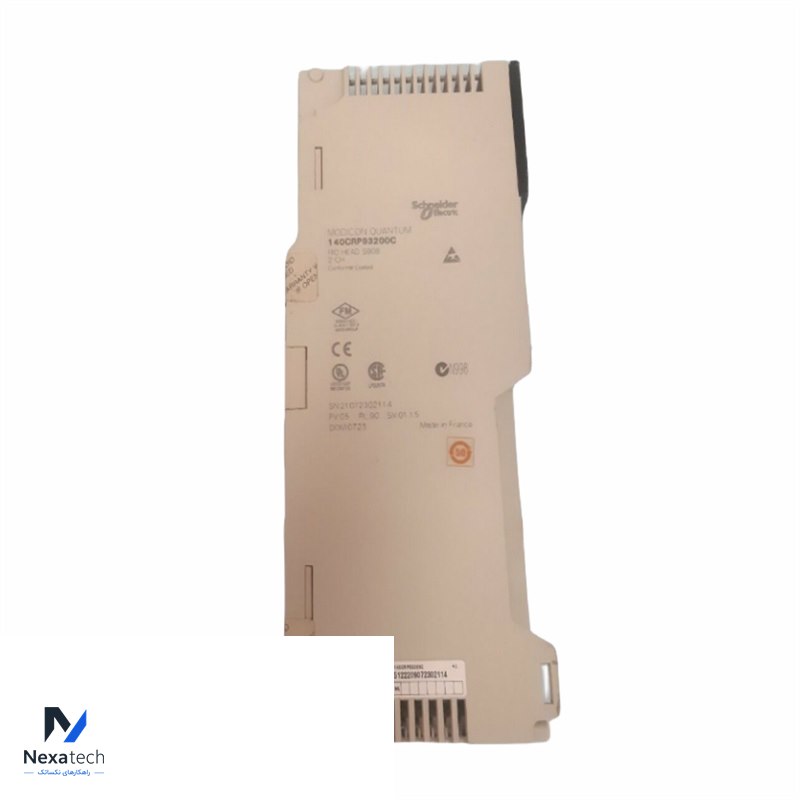

Schneider Electric 140CRP93200C RIO head-end adaptor module
توضیحات محصول
مشخصات فنی
| Specification | |
| Brand Name | Schneider Electric |
| Model Number | 140CRP93200C |
| Alternate Part Number | 140CRP93200C |
| Condition | 100% Original |
| Dimensions | 4x10.5x25cm |
| Description | RIO head-end adaptor module |
| Weight | 0.42 kg |
| Warranty | 12 Months |
| Item | Description |
| Product Range | Modicon Quantum Platform |
| Product or Component Type | RIO Head-End Adapter Module |
| Product Compatibility | Symax (any mix), Quantum 200/500/800 series |
| Maximum Drops/Network | 31 |
| I/O Words/Drop | 64 I / 64 O |
| Type of Cable | 75 Ohm Coaxial Cable |
| Transmission Rate | 1544 Mbit/s |
| Dynamic Range | 35 dB |
| Isolation Voltage | 500 V DC Coaxial Center and Ground |
| Electrical Connection | 2 Female Connectors F, Elbowed with Redundant Cable |
| Diagnostics Startup | Power Up, LAN Controller Check, Memory Check |
| Power Dissipation (W) | 3 W (2 Channels) |
| Marking | CE |
| Bus Current Requirement | 750 mA (2 Channels) |
FAQ:
1.What is the Schneider Electric 140CRP93200C RIO Head-End Adapter Module?
The 140CRP93200C is an adapter module for Modicon Quantum controllers, designed to connect remote I/O devices for efficient data exchange.
2.What are the main functions of the module?
This module allows users to connect remote I/O devices to the control system, enabling real-time monitoring and data processing, thus enhancing system flexibility.
3.How to troubleshoot?
Check the power connections and the status of communication interfaces to ensure the module's indicator lights are functioning properly. For detailed information, refer to the troubleshooting section in the user manual.
