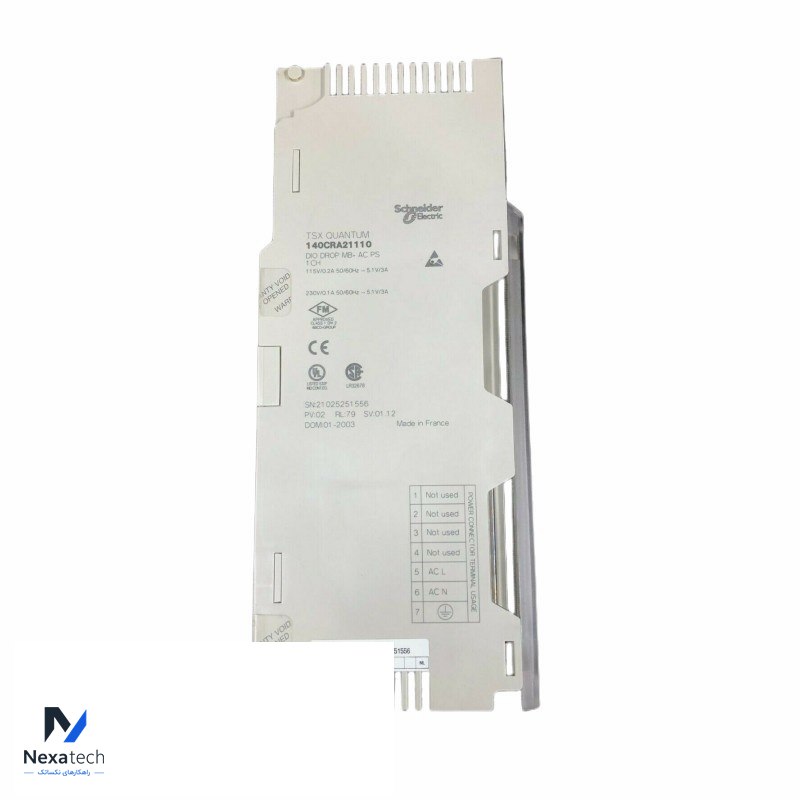

Schneider Electric 140CRA21110 DIO Drop Interface
توضیحات محصول
مشخصات فنی
| Specification | |
| Brand Name | Schneider Electric |
| Model Number | 140CRA21110 |
| Alternate Part Number | 140CRA21110 |
| Condition | 100% Original |
| Dimensions | 4x10.4x25cm |
| Description | DIO Drop Interface |
| Weight | 0.56 kg |
| Warranty | 12 Months |
| Item | Description |
| Number of Ports | 1 Single |
| [Us] Rated Supply Voltage | 115/230 V AC |
| Supply Voltage Limits | 85…276 V |
| Supply Frequency | 47...63 Hz |
| Maximum Supply Current | 0.2 A (115 V) |
| Inrush Current | 0.4 A (230 V) |
| 10 A (115 V) | |
| 20 A (230 V) | |
| Rated Power in VA | 50 VA |
| Associated Fuse Rating | 1.5 A |
| Output Voltage | 5.1 V |
| Nominal Output Current | 3 A |
| Minimum Load Current | 0 A |
| Short-Circuit Protection | With |
| Output Overvoltage Protection | With |
| I/O Words | 30 I / 32 O |
FAQ:
1.What is the Schneider Electric 140CRA21110 DIO Drop Interface?
The 140CRA21110 is a digital input/output interface module designed for the Modicon Quantum automation platform.
2.How many digital inputs and outputs does this module support?
This module supports 32 digital inputs and 32 digital outputs.
3.What is the voltage range for inputs and outputs?
The voltage range for both inputs and outputs is 24 V DC.
