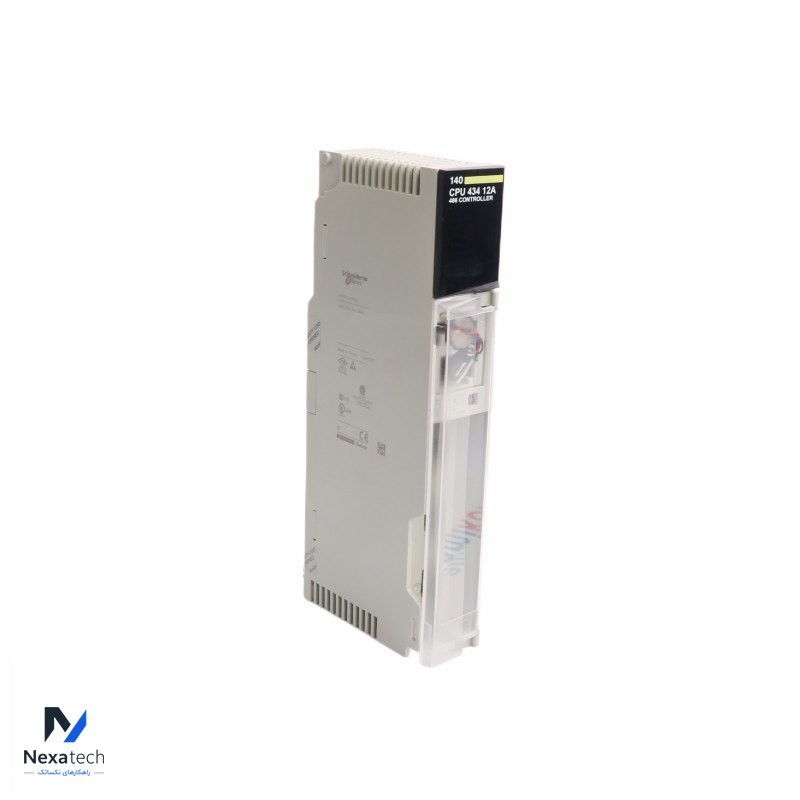

Schneider Electric 140CPU43412A CPU Module

Schneider Electric 140CPU43412A CPU Module
General Description:
Model: 140CPU43412A
Type: Central Processing Unit (CPU) Module
Function: Manages the control tasks in the Modicon Quantum PLC system, executes user programs, and coordinates communication between various modules and devices.
Technical Specifications:
Processor Type: High-performance processor designed for complex control tasks and high-speed processing.
Processing Speed: Enhanced speed compared to earlier models, providing improved performance for demanding applications.
Memory:
RAM: Onboard RAM for real-time data processing and program execution.
Flash Memory: Non-volatile flash memory for program storage and system configuration, offering greater storage capacity.

Communication Ports:
Ethernet Ports: Typically includes multiple Ethernet ports for network communication, supporting various protocols and integration with networked devices.
Serial Communication: May include serial communication ports for connecting to other devices or systems.
I/O Compatibility: Interfaces with a wide range of input and output modules within the Modicon Quantum system.
Redundancy: Supports redundancy features for increased system reliability and uptime.

Features:
Enhanced Performance: Provides improved processing power and speed, making it suitable for more complex and faster control applications.
Increased Memory: Greater memory capacity for handling larger programs and more data.
Advanced Communication: Improved communication capabilities with enhanced network integration and support for various protocols.
Scalability: Supports expansion with additional I/O modules and communication options.
Diagnostics: Includes advanced diagnostic features to monitor system health and detect potential issues.

Applications:
Industrial Automation: Used for controlling and monitoring complex industrial processes and automation systems.
Process Control: Suitable for applications requiring high-speed processing and advanced control logic.
Networked Systems: Ideal for systems that require robust network communication and integration with other devices.
Installation and Maintenance:
Mounting: Installed into a Modicon Quantum rack or backplane, fitting into standard slots.
Connection: Connects to other modules and devices via standard communication ports and connectors.
Maintenance: Modular design allows for easy replacement and maintenance, with minimal system downtime. Firmware updates and system configuration can be managed through Schneider Electric’s programming tools.
