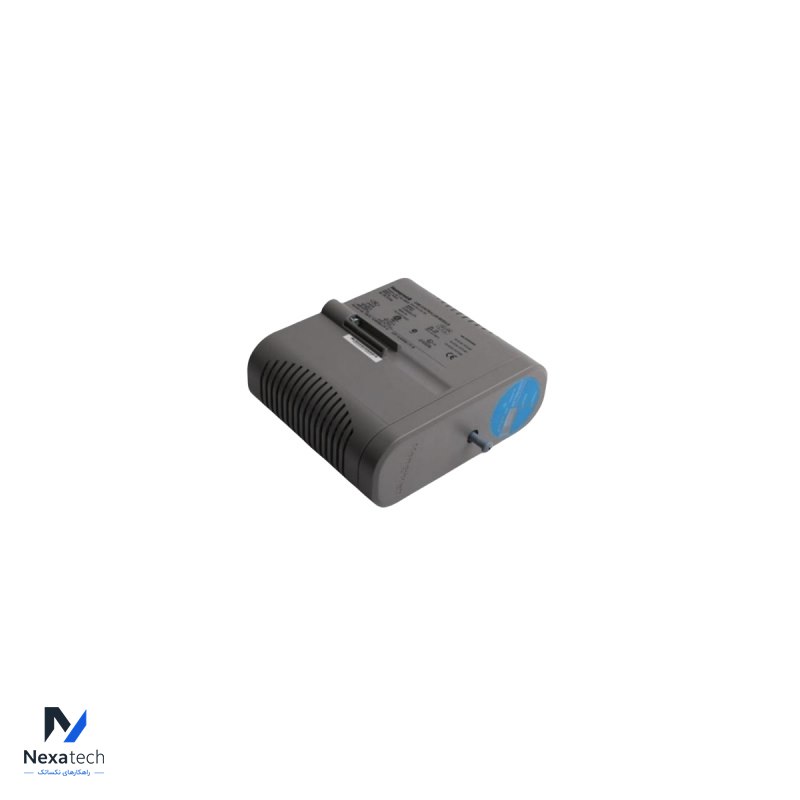

Name: Schneider Electric 140ARI03010C Analog input module
Brand: Schneider Electric
SKU: 140ARI03010C
Availability: InStock

Specification
Brand Name	Schneider Electric
Model Number	140ARI03010C
Alternate Part Number	140ARI03010C
Condition	100% Original
Dimensions	4x10.5x25cm
Description	Analog input module
Weight	0.28kg
Warranty	12 Months

The Schneider Electric 140ARI03010C is an Analog Input Module from the Modicon Quantum series. This module is designed for collecting analog signals from sensors and devices and converting them into digital values for processing by a Programmable Logic Controller (PLC). It is widely used in industrial applications where precision analog measurements are required.

Key Specifications:
Product Type: Analog Input Module
Number of Channels: 8 isolated inputs
Input Signal Type:
Current: 0-20 mA / 4-20 mA
Voltage: ±10 V
Input Impedance:
Current: 250 Ohms
Voltage: 10 MOhms
Resolution: 15 bits plus sign
Conversion Time: 9 ms per channel
Accuracy:
±0.1% full scale for current and voltage inputs

Isolation: 750 V RMS isolation between each channel and the PLC bus
Diagnostics: LED indicators for module and channel status
Power Consumption: 3.0 W
Mounting: DIN rail or panel mounting compatible
Operating Temperature: -25 to 60°C
Dimensions: Standard Modicon Quantum form factor
Application: Used for analog signal processing in applications like process control, automation, and monitoring systems.

This module is ideal for use in industries where precise measurement and control of analog signals such as temperature, pressure, or flow rate are critical.

Main Range of Product	Modicon Quantum automation platform
Product or Component Type	Analogue input module
Analogue Input Number	8
Input Type	Differential
Addressing Requirement	9 input words
Analogue Input Type	Temperature probe - 100...450 °C Pt 100, Pt 200, Pt 500, Pt 1000
Analogue Input Resolution	13 bits
Input Impedance	≥ 10 MΩ
Absolute Accuracy Error	0.1 °C
Linearity Error	± 0.01 % full scale
Accuracy Drift According to Temperature	± 0.5 °C (25 °C)
Isolation Between Channels and Bus	1780 V AC 47...63 Hz 60 s
Isolation Between Channels	300 Vrms AC
Update Time	1200 ms (3 wires), 640 ms (2 wires/4 wires)
Fault Type	Broken wire, Overtacking scale
Marking	CE
Local Signalling	1 LED (green) for bus communication is present (Active)
Bus Current Requirement	200 mA
Power Dissipation in W	1 W
Module Format	Standard
Net Weight	0.7 lb (0.3 kg)
Environment Protective Treatment	Conformal coating Humiseal 1A33
Standards	UL 508, CSA C22.2 No 142
Product Certifications	FM Class 1 Division 2, cUL
Resistance to Electrostatic Discharge	4 kV contact IEC 801-2, 8 kV on air IEC 801-2
Resistance to Electromagnetic Fields	9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3
Ambient Air Temperature for Operation	32…140 °F (0…60 °C)
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Relative Humidity	95 % without condensation
Operating Altitude	≤ 16404.2 ft (5000 m)
