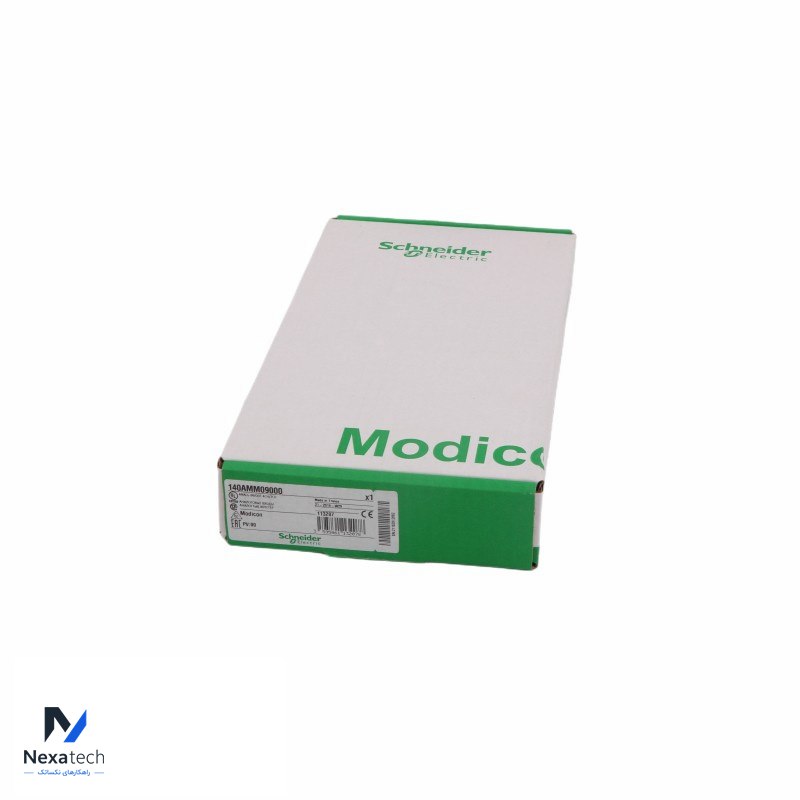

Schneider Electric 140AMM09000 Analog I/O module

The Schneider Electric 140AMM09000 is an Analog Input/Output Module from the Modicon Quantum series. This module is designed to handle both analog inputs and outputs, making it a versatile option for controlling and monitoring a variety of industrial processes where precise analog signal handling is essential.

Key Features and Specifications:
Product Type: Analog Input/Output Module
Number of Channels:
8 input channels
4 output channels
Input Signal Types:
Current: 0-20 mA / 4-20 mA
Voltage: ±10 V

Output Signal Types:
Current: 0-20 mA / 4-20 mA
Voltage: 0-10 V
Input Resolution: 13-bit resolution plus sign for accurate signal conversion
Output Resolution: 12-bit resolution for precise output control
Conversion Time: 10 ms per channel
Accuracy: ±0.1% full scale for both input and output

Diagnostics:
LED indicators for module and channel status
Diagnostic features include channel error reporting and signal range checking
Isolation: 750 V RMS isolation between channels and the system backplane, providing protection from electrical interference
Power Consumption: 5 W
Mounting: DIN rail or panel mounting
Operating Temperature: -25 to 60°C
Dimensions: Standard Modicon Quantum form factor
Compatibility: Fully compatible with Modicon Quantum PLCs and other Quantum system modules
Applications: Used in process control, factory automation, and other industrial environments where accurate analog signal processing is required.

Applications:
Process Control: For monitoring and controlling variables such as temperature, pressure, flow rate, and more.
Machine Automation: In applications where both input and output analog signals need to be processed.
Industrial Monitoring: Real-time data acquisition from sensors and control of actuators.
This module is ideal for use in industrial automation environments where precise analog inputs and outputs are needed for process control, machine automation, and other industrial applications.
