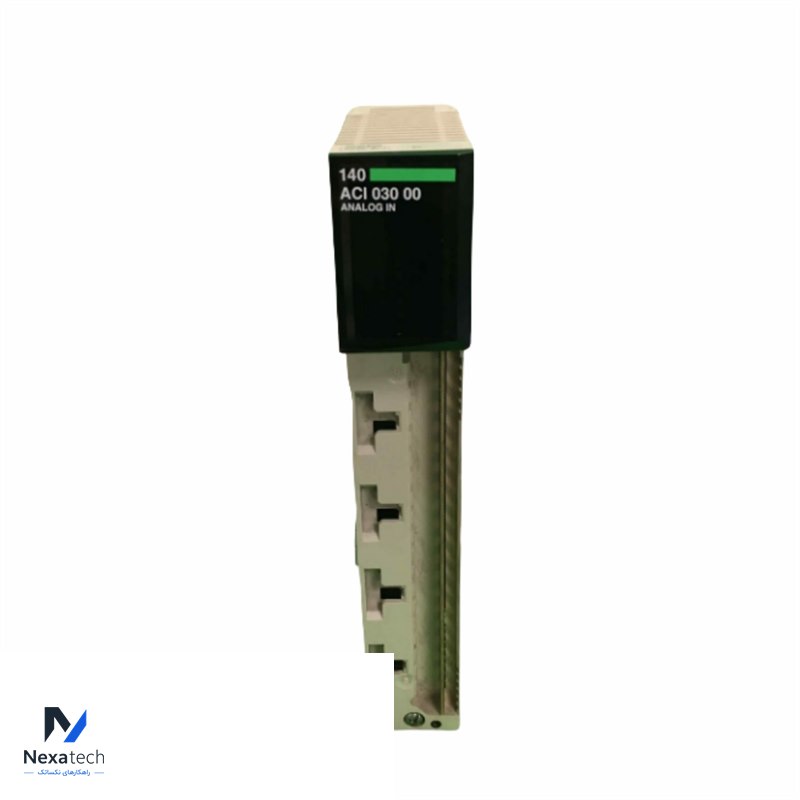

Schneider Electric 140ACI03000C Analog Input Module

Schneider Electric 140ACI03000C Analog Input Module
General Description:
Model: 140ACI03000C
Type: Analog Input Module
Function: Acquires and processes analog signals from field devices such as sensors, transducers, and process instrumentation. It converts these analog signals into a digital format that can be used by the control system.

Technical Specifications:
Number of Inputs: Typically 8 channels per module.
Input Types:
Voltage Inputs: Common ranges include ±10 VDC, 0-10 VDC.
Current Inputs: Common ranges include 4-20 mA, 0-20 mA.
Resolution: Generally 12 bits or 16 bits, providing high precision in signal measurement.
Accuracy: Typically ±0.1% of full scale, ensuring reliable and accurate measurements.
Isolation: Provides electrical isolation between the input channels and the module’s internal electronics to reduce noise and prevent interference.
Sampling Rate: Fast sampling rate to support real-time processing and monitoring, often configurable based on application needs.

Features:
Modular Design: Designed to be easily integrated into Schneider Electric control systems, with a modular design that supports hot-swapping for maintenance and upgrades.
Calibration: Includes calibration features to maintain accuracy over time and ensure reliable performance.
Diagnostics: Equipped with diagnostic capabilities to monitor input status and detect any potential issues.
Compatibility: Compatible with Schneider Electric’s range of control systems and supports various field devices.
