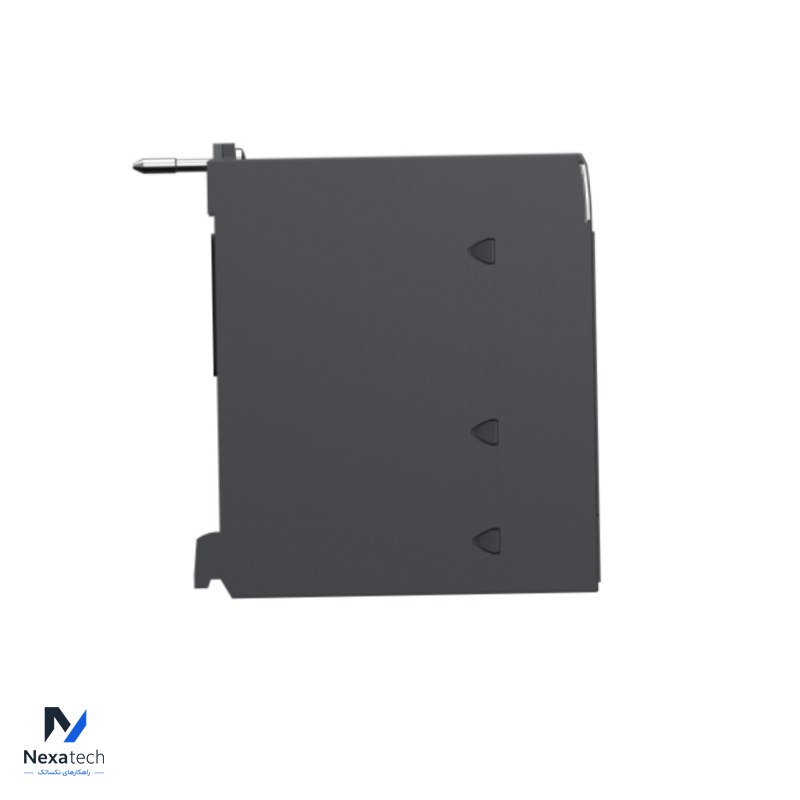

Schneider BMXDDO1602 Output Module

Specification

Brand Name

Schneider

Output Voltage：24 VDC
Discrete Output Current：0.5 A
Current per Channel：0.625 A
Current per Module：<= 10 A
Leakage Current：<= 0.5 mA at State 0
Residual Voltage：1.2 V at State 1
Insulation Resistance ：> 10 MOhm at 500 V DC
Power Dissipation：<= 4 W
Response Time on Output：1.2 ms
Typical Current Consumption：100 mA at 3.3 V DC


Model Number

BMXDDO1602

Alternate Part Number

BMXDDO1602

Condition

100% Original

Dimensions

3.1x10.3x10.2cm

Description

Output Module

Weight

0.15kg

Warranty

12 Months
