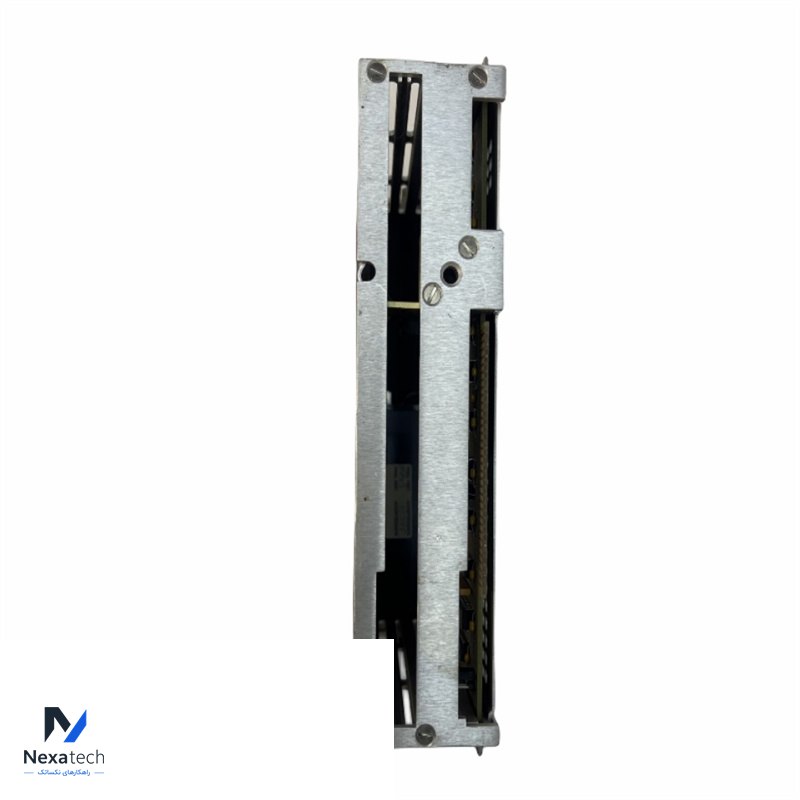

Name: Schneider AS-S908-110 I/O processors with single I/O cable
Brand: Schneider Electric
SKU: AS-S908-110
Availability: InStock

مشخصات فنی

Brand Name:	Schneider
Model Number:	AS-S908-110
Alternate Part Number	AS-S908-110
Condition:	100% Original
Dimensions	22.9 cm x 7.6 cm x 27.9 cm	Weight	1.2kg
Description	I/O processors with single I/O cable	Warranty:	12 Months

The AS-S908-110 is commonly used in Modicon systems to streamline and manage input/output operations via a single I/O cable, ensuring efficient communication in automation and control processes.

The S908-110 modules are smaller in size compared to the S911-000 and S908-OXX modules. They are specifically designed to fit into the ASH819-209 or AS-H827-209 housings. These modules are primarily used with 984-680 controllers.

The S908-110 module features cable connectors located on its left sidewall.

Basic Hardware Configuration:

Each 984-680 Hot Standby System is housed in an 800-series primary housing (MODICON part numbers H819-209 or H927-209). At minimum, the housing contains the following three modules:

1.A 984-680 controller module,

2.An S911-800 hot standby module, and

3.An S908-110 remote I/O processor.
