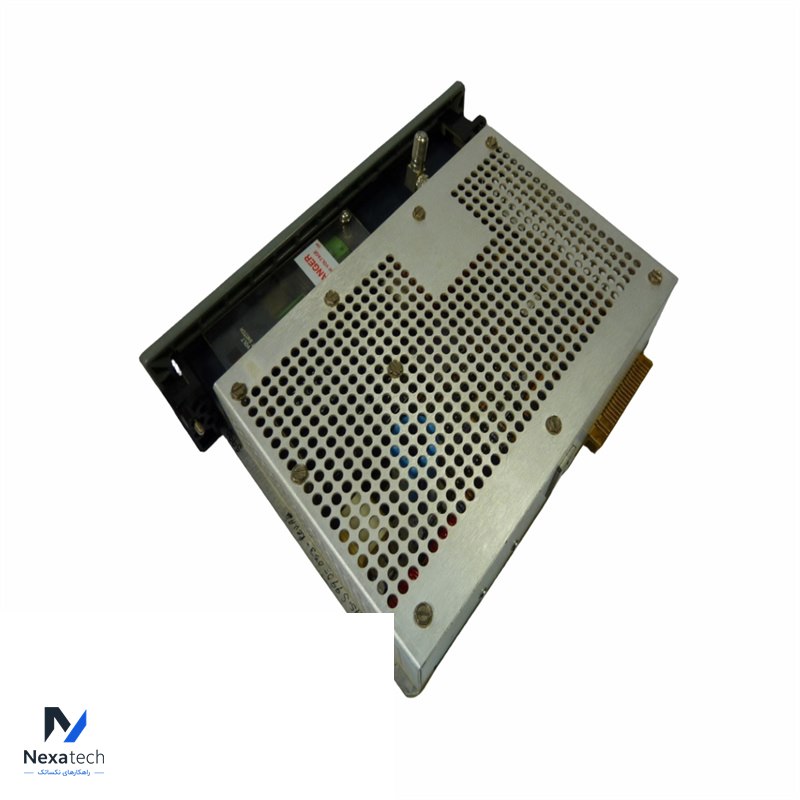

Schneider AS-P890-000 Modicon Quantum 800 Series I/O Modules
توضیحات محصول
مشخصات فنی
| Brand Name: | Schneider | ||
| Model Number: | AS-P890-000 | ||
| Alternate Part Number | AS-P890-000 | ||
| Condition: | 100% Original | ||
| Dimensions | 20.3cm*7.6cm*27.9cm | Weight | 2.3kg |
| Description | Modicon Quantum 800 Series I/O Modules | Warranty: | 12 Months |
| | | | |
The Schneider AS-P890-000 is a part of the Modicon Quantum 800 Series I/O Modules.
Here is a step-by-step procedure to install the ASP890300 Processor:
| Step | Action |
| Step1 | Set the processor’s Mode Select and Drop Address switches appropriately. |
| For example | when replacing or emulating an AS-P890-000, AS-J890-001, or AS-J890-101, select Rotary Switch Position 1. |
| Step2 | If using ASCII communications, set the processor’s Port Address and Handshake switches as required. |
| Step2 | - The Port 1/Port 2 Handshake and J892 Port ASCI Address switches are ignored if the Mode switch setting indicates ASCII is disabled. |
| Step2 | - The Handshake switches are enabled if a switch position indicating ASCII Enabled is selected. |
| Step2 | - The J892 Port ASCI switches are enabled as indicated. |
