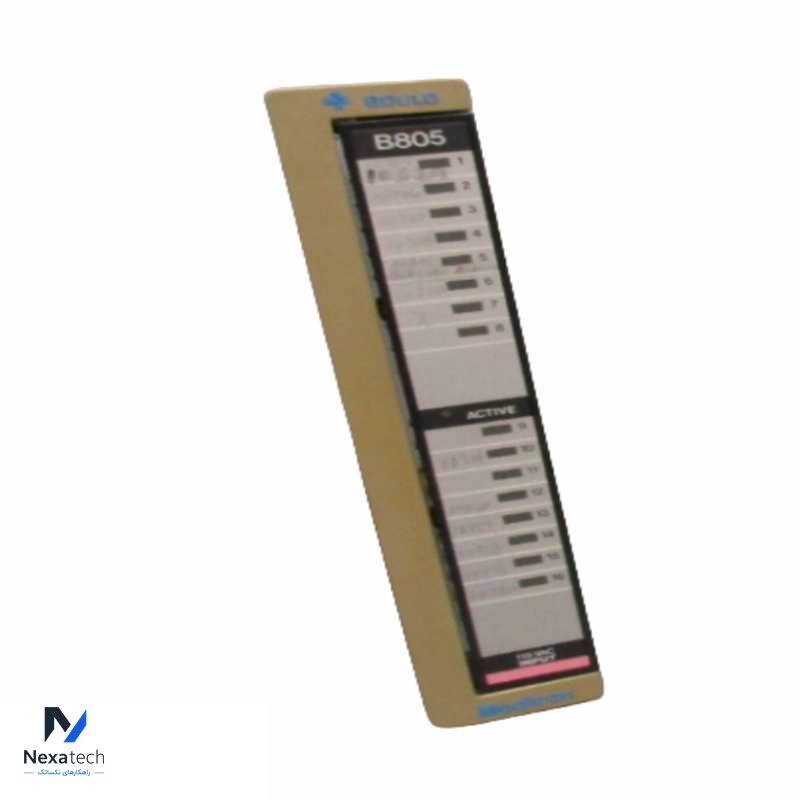

Schneider AS-B805-016 Field Wire Conversion Module

The Schneider AS-B805-016 is a Field Wire Conversion Module designed for use with Schneider’s automation systems. This module facilitates the connection and conversion of field wiring signals to be compatible with Schneider’s automation equipment, ensuring seamless integration and functionality.

The 1492-CM800-LD003 conversion module facilitates the conversion of field wire signals from a Modicon® B805-016 or B853-016 input module (operating at 80 to 130V AC) to a 1756-IA16 input module (operating at 74 to 132V AC). This module provides the necessary connections to interface with the swing-arm (terminal block) of the B805-016 or B853-016, routing the signals through its 20-pin connector and a 1492-CABLEOX pre-wired cable to the compatible terminals of the 1756-IA16. For detailed wiring, refer to the Wiring Diagram provided on pages 2 and 3, which also aids in troubleshooting the system
