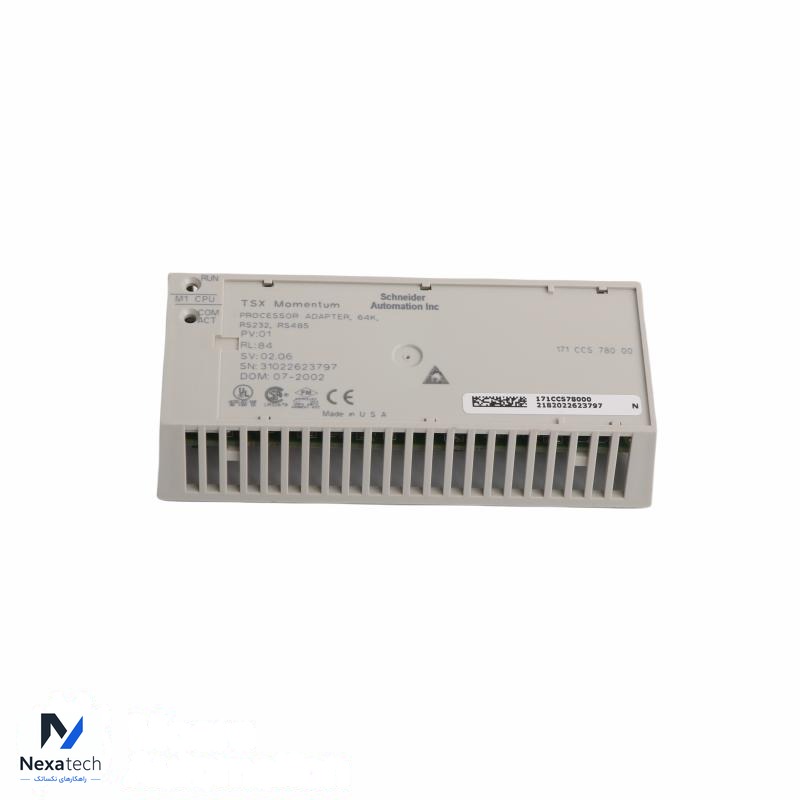

Schneider 171CCS78000 M1/M1E processors adaptor - 2 Modbus - 20 MHz
توضیحات محصول
مشخصات فنی
| Brand Name: | Schneider | ||
| Model Number: | 171CCS78000 | ||
| Alternate Part Number | 171CCS78000 | ||
| Condition: | 100% Original | ||
| Dimensions | 12.5x6.2x2.6cm | Weight | 0.06kg |
| Description | M1/M1E processors adaptor - 2 Modbus - 20 MHz | Warranty: | 12 Months |
| | | | |
The Schneider 171CCS78000 is part of the Modicon Momentum M1/M1E processors line.
Below is a detailed table with the key specifications:
| Specification | M1 Type 1 | M1 Type 2 |
| Number of I/O Discrete | 2048 I/O | 2048 I/2048 Q |
| Registers | 2048 words | 4096 words |
| Integrated Communication Ports | 1 Modbus RS 232C | 1 RS 232C + 1 RS 485 |
| Ethernet TCP/IP | Not available | Not available |
| I/O Bus | (1) Not available | 1 I/O port (INTERBUS) |
| Transparent Ready Embedded Web Server | Not available | Not available |
| Memory Capacity - RAM | 64 Kb | 256 Kb |
| Memory Capacity - Flash | 256 Kb | 256 Kb |
| User, 984 LL Language (2) | 2.4 K | 12 K |
| User, IEC Language (3) | Not available | 160 K |
| Data Memory | 2 K | 4 K |
| Cycle Time | 1 ms/K | 1 ms/K |
| Reference | 171CCS70000 | 171CCS78000 |
محصولات مرتبط

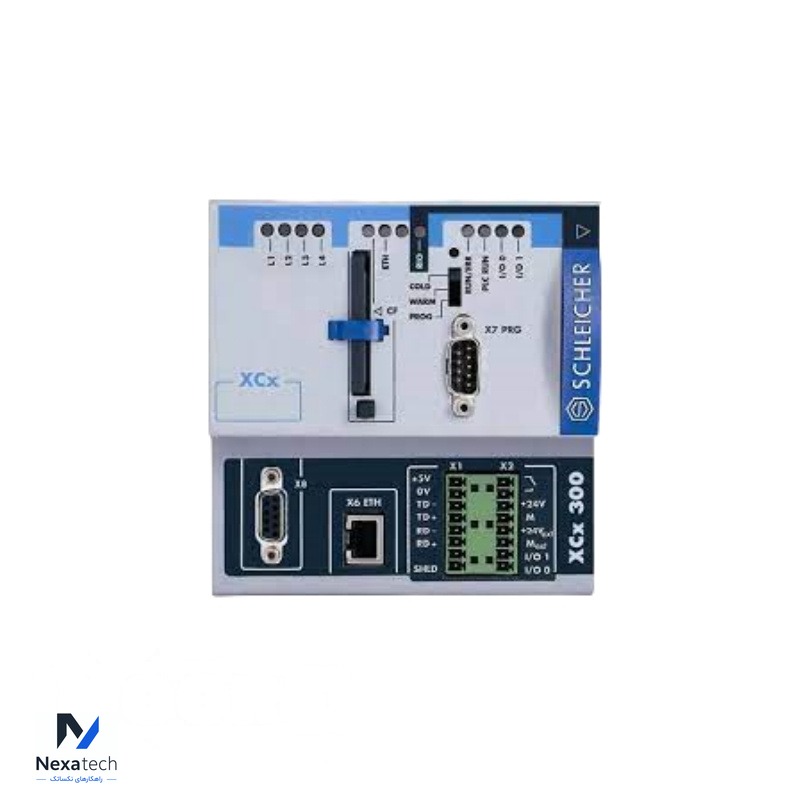

Schneider XCX300 XCN300E R4.501.0030.0 CPU Module

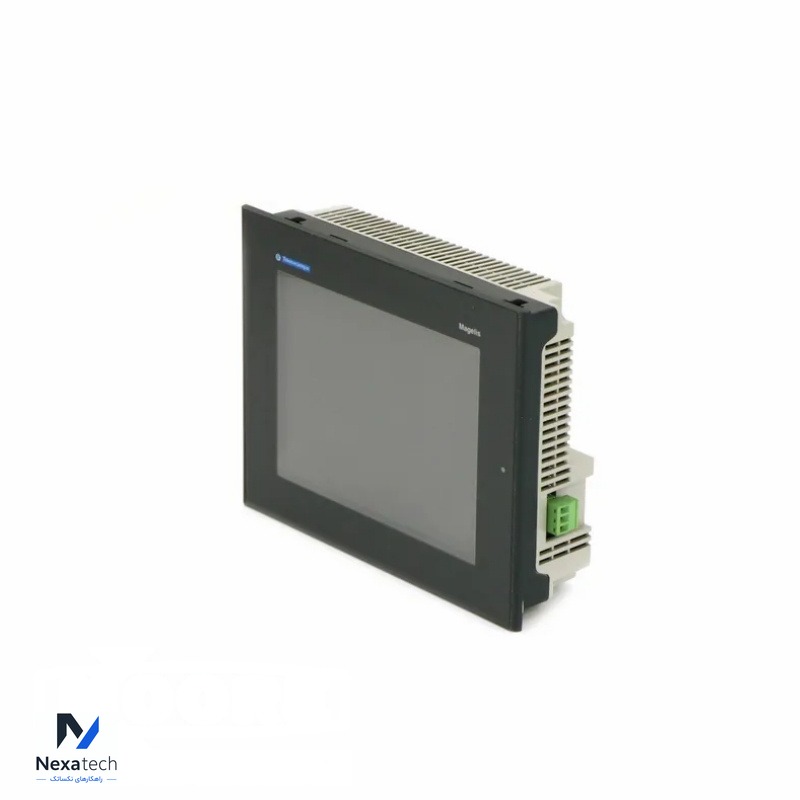

Schneider XBTORT7340 Touch Screen
Schneider XBTGT2220 advanced touchscreen panel

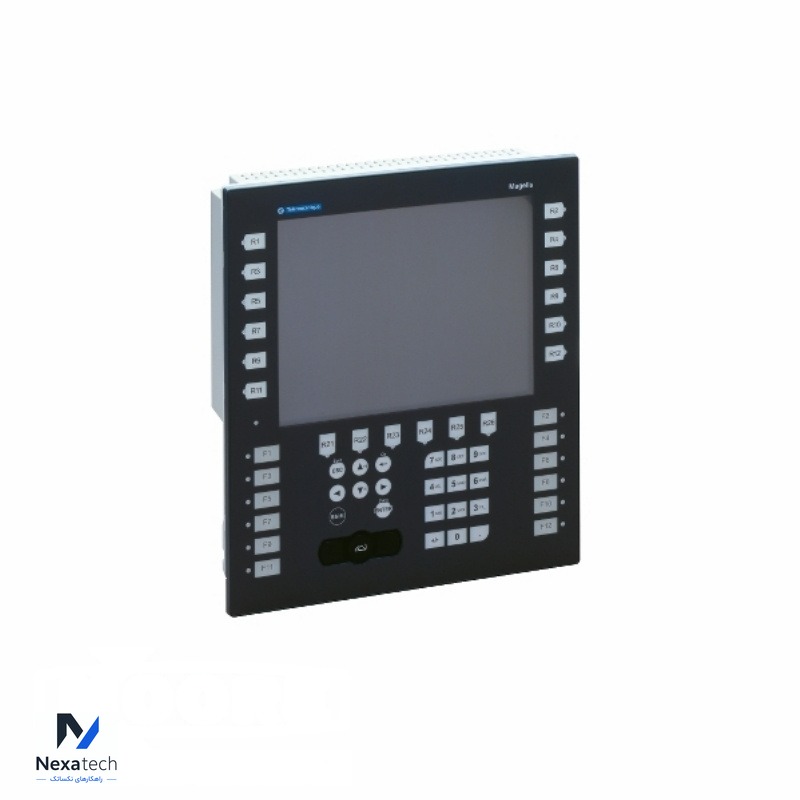

Schneider XBTGK5330 touchscreen panel

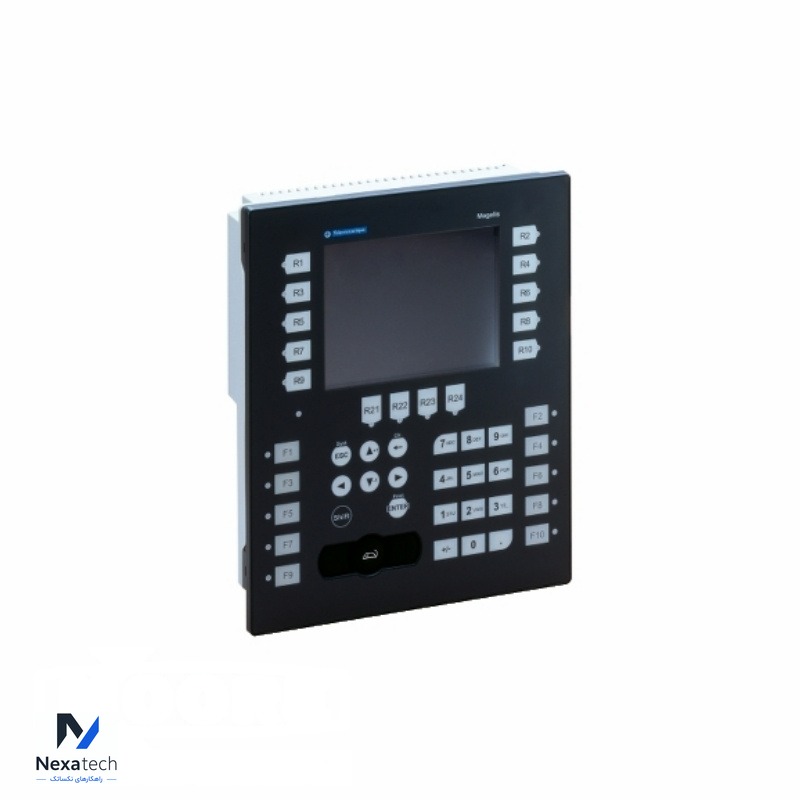

Schneider XBTGK2330 touchscreen panel

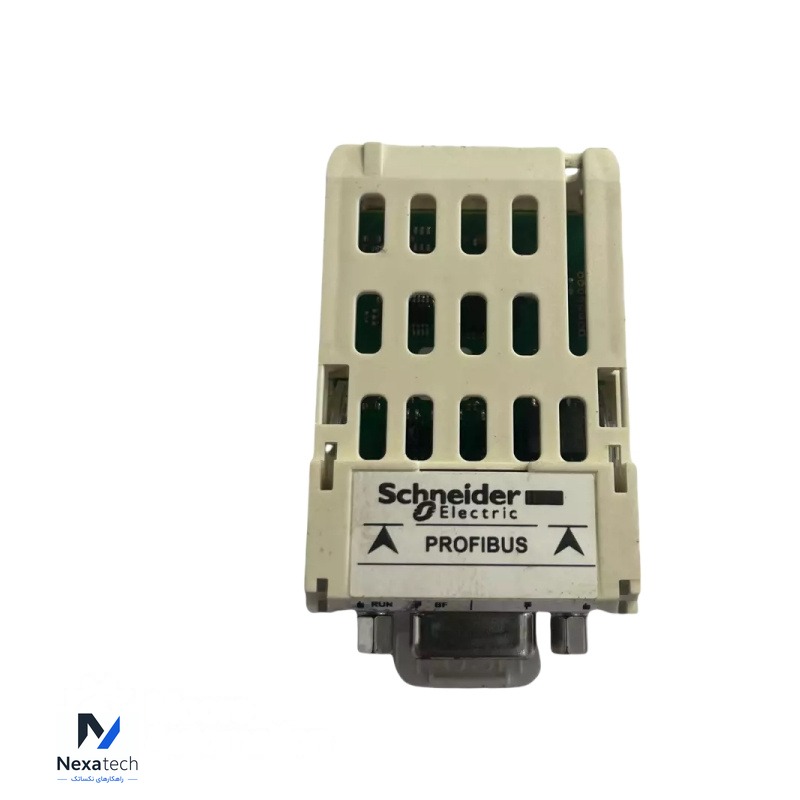

Schneider VW3A3607 Profibus DP Communication Module
