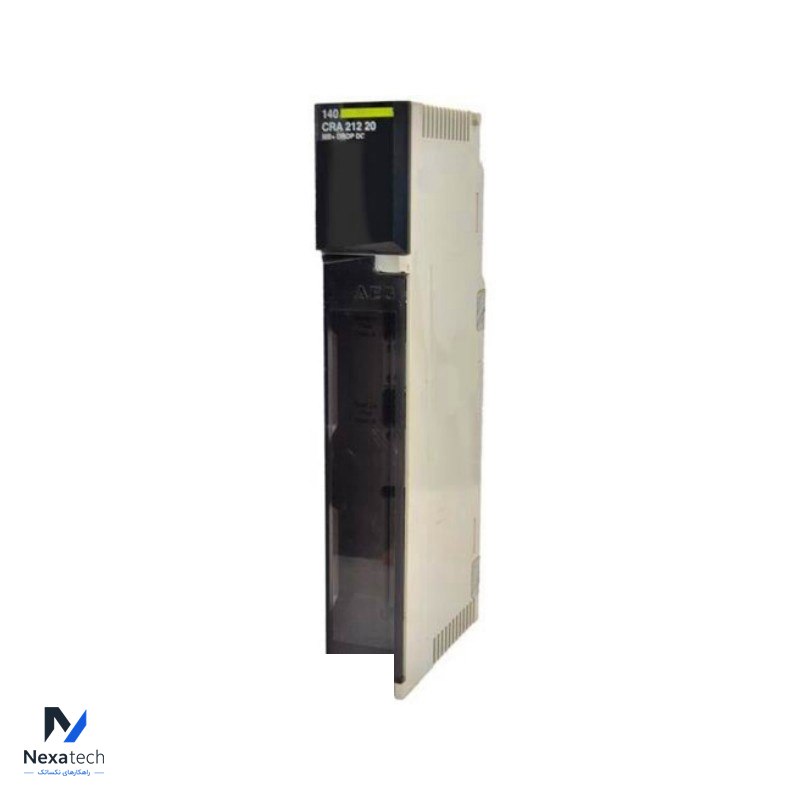

Schneider 140CRA21220 DIO drop interface Modicon Quantum - 24 V DC - 2 redundant port
توضیحات محصول
مشخصات فنی
| Brand Name: | Schneider | ||
| Model Number: | 140CRA21220 | ||
| Alternate Part Number | 140CRA21220 | ||
| Condition: | 100% Original | ||
| Dimensions | 10.2 cm x 25.4 cm x 3.8 cm | Weight | 0.91kg |
| Description | DIO drop interface Modicon Quantum - 24 V DC - 2 redundant port | Warranty: | 12 Months |
| | | | |
The 140CRA21220 module is used to interface with distributed I/O systems, providing redundancy to ensure continuous operation even in case of a port failure.
Here’s an overview of the Schneider 140CRA21220 DIO drop interface:
| Main | |
| Range of product | Modicon Quantum automation platform |
| Product or component type | DIO drop interface |
| Environment | |
| Resistance to electrostatic discharge | 4 kV contact (IEC 801-2), 8 kV on air (IEC 801-2) |
| Resistance to electromagnetic fields | 9.14 V/m (10 V/m) 80…2000 MHz (IEC 801-3) |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 95% without condensation |
| Operating altitude | ≤ 16404.2 ft (5000 m) |
| Protective treatment | TC |
| Standards | UL 508 |
| Product certifications | UL, C-tick, GOST, CSA Class 1 Division 2, DNV |
