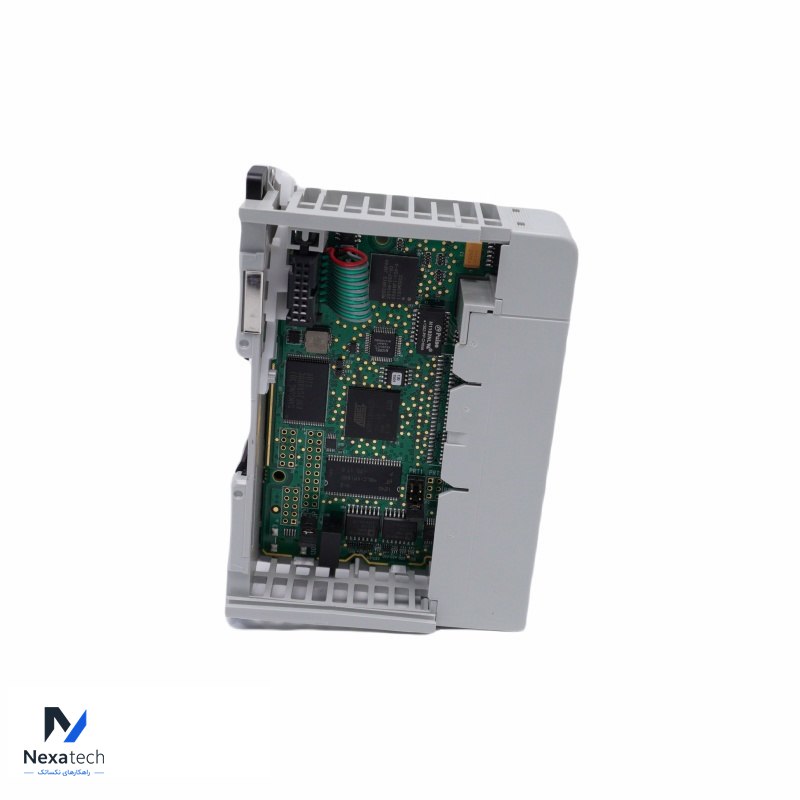

Name: PROSOFT MVI69L-MBS Modbus Serial Lite Communication Module
Brand: Prosoft
SKU: MVI69L-MBS
Availability: InStock

مشخصات فنی

Brand Name:	PROSOFT
Model Number:	MVI69L-MBS
Alternate Part Number	MVI69L-MBS
Condition:	100% Original
Dimensions	5.4cm13.5cm13.3cm	Weight	0.4kg
Description	Modbus Serial Lite Communication Module	Warranty:	12 Months

The ProSoft MVI69L-MBS is a Modbus Serial Lite Communication Module designed for use with PLC platforms. This module facilitates serial communication using the Modbus protocol, providing a cost-effective solution for integrating Modbus serial devices into a system.

The MVI69L-MBS Modbus Serial Module is designed for controllers, making it ideal for smaller applications that require communication with a few Modbus Serial devices. This module is equipped with an Add-on Profile and Add-on Instruction, which streamline the commissioning process.

Key Features:

Compatibility: Supports processors with 1769 I/O bus capability version 16 and later (Note: 1500 is not supported).

Add-on Instruction: Provides User-Defined Types (UDTs) for logical definitions of I/O, status, and control data.

Add-on Profile: Enhances integration within the system.

Diagnostic Data: Available in processor controller tags, allowing for decisions based on node health.

Configuration Backup: Module configuration is saved within the project (ACD file).

Co-Processor Functionality: Acts as a co-processor, minimizing impact on PLC scan time.

I/O Data Support: Handles up to 240 words of I/O data.

Port Configuration: Application port can be set as either a Modbus Master or Modbus Slave.

Modbus Commands: Supports up to 30 Modbus commands when operating as a Modbus Master.

Floating Point Data: Compatible with Enron and Daniel style floating point data implementations.

Target Applications: Well-suited for OEM and machine builder applications.

PROSOFT MVI69L-MBS Modbus Serial Lite Communication Module
