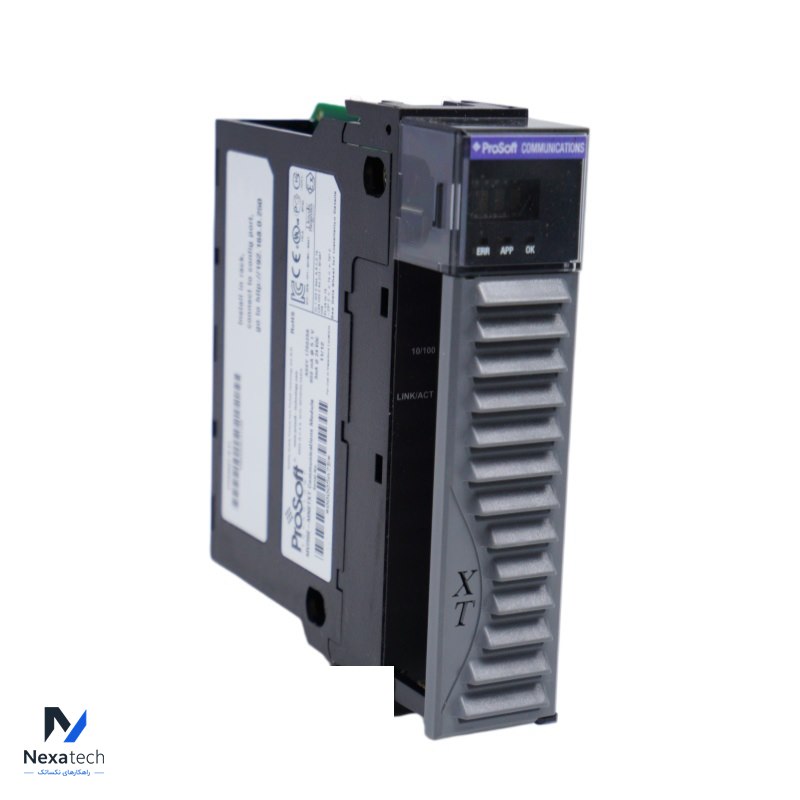

Name: PROSOFT MVI56E-MNETXT Modbus TCP/IP Client/Server Enhanced Network Interface Module
Brand: Prosoft
SKU: MVI56E-MNETXT
Availability: InStock

مشخصات فنی

Brand Name:	PROSOFT
Model Number:	MVI56E-MNETXT
Alternate Part Number	MVI56E-MNETXT
Condition:	100% Original
Dimensions	3.4x14.2x14.5cm	Weight	0.26KG
Description	Network Interface Module	Warranty:	12 Months

The MVI56E Modbus TCP/IP Client/Server Communication Module enables seamless integration between Rockwell Automation ControlLogix processors and various Modbus-compatible devices, including Modicon Programmable Automation Controllers (PACs) and numerous instruments. The module features a 5000-word register space to facilitate data exchange between the processor and the Modbus TCP/IP network.

There are two variants: the MVI56E-MNET, designed for standard process applications, and the MVI56E-MNETXT, designed for the Logix-XT™ control platform. The MVI56E-MNETXT is tailored for extreme environments, featuring a conformal coating for protection against harsh or corrosive conditions and can operate at higher temperatures.

Here's a table presenting the key updates and features of the MVI56E Modbus TCP/IP Client/Server Communication Module:

Feature	Description
ProSoft Configuration Builder (PCB)	New Windows software for diagnostics and module configuration via the Ethernet port or CIPconnect®, enabling easy upload/download of configuration data and troubleshooting.
ProSoft Discovery Service (PDS)	Utility software that detects and displays MVI56E modules on the network, allowing temporary IP address changes for web page access.
CIPconnect-enabled	Enables PC-to-module configuration and diagnostics through the Ethernet network via a ControlLogix 1756-ENBT EtherNet/IP™ module.
Personality Module	Industrial compact flash memory card storing the module’s full configuration and Ethernet settings for quick and easy replacement.
LED Scrolling Diagnostic Display	4-character alphanumeric display providing status and alarm messages in standard English, as well as processor and network communication status.
XT Series for Extreme Environments	The MVI56E-MNETXT module is designed to operate in extreme temperatures and harsh environments, with a conformal coating for protection against corrosive elements.
