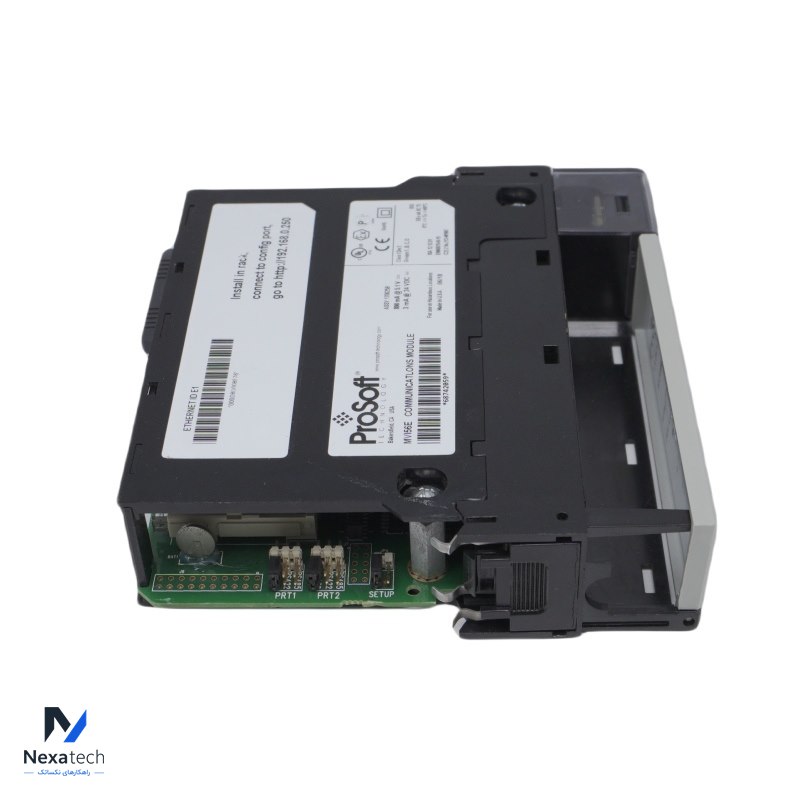

Name: PROSOFT MVI56E-MNETR Modbus TCP/IP Interface Module with Reduced Data Block
Brand: Prosoft
SKU: MVI56E-MNETR
Availability: InStock

Brand Name:	PROSOFT
Model Number:	MVI56E-MNETR
Alternate Part Number	MVI56E-MNETR
Condition:	100% Original
Dimensions	7.1cm14cm14.6cm	Weight	0.75KG
Description	Modbus TCP/IP Interface Module	Warranty:	12 Months

MVI56E products are backward compatible with existing MVI56 products, ladder logic, and module configuration files already in use. Easily swap and upgrade products while benefiting from an array of new features designed to improve interoperability and enhance ease-of-use.

• Configuration Builder (PCB): New Windows software for diagnostics,

connecting via the module's Ethernet port or CIPconnect®, to upload/download

module configuration information and access troubleshooting features and functions.

•Discovery Service (PDS): Utility software to find and display a list of

MVI56E modules on the network and to temporarily change an IP address to connect with a module's web page.

• CIPconnect-enabled: Allows PC-to-module configuration and diagnostics from the Ethernet network through a 1756-ENBT EtherNet/IP™ module.

• Personality Module: An industrial compact flash memory card storing the module’s complete configuration and Ethernet settings, allowing quick and easy replacement.

• LED Scrolling Diagnostic Display: 4-character, alphanumeric display, providing standard English messages for status and alarm data, and for processor and network communication status.

System Requirements

The MVI56E-MNETR module requires the following minimum hardware and software components:

• Rockwell Automation processor (firmware version 10 or higher), with

compatible power supply, and one free slot in the rack for the MVI56E-MNETR module. The module requires 800 mA of available 5 Vdc power

• Rockwell Automation RSLogix 5000 programming software

o Version 16 or higher required for Add-On Instruction

o Version 15 or lower must use Sample Ladder

• Rockwell Automation RSLinx® communication software version 2.51 or higher

• ProSoft Configuration Builder (PCB) (included)

• ProSoft Discovery Service (PDS) (included in PCB)

• Pentium®

II 450 MHz minimum. Pentium III 733 MHz (or better) recommended
