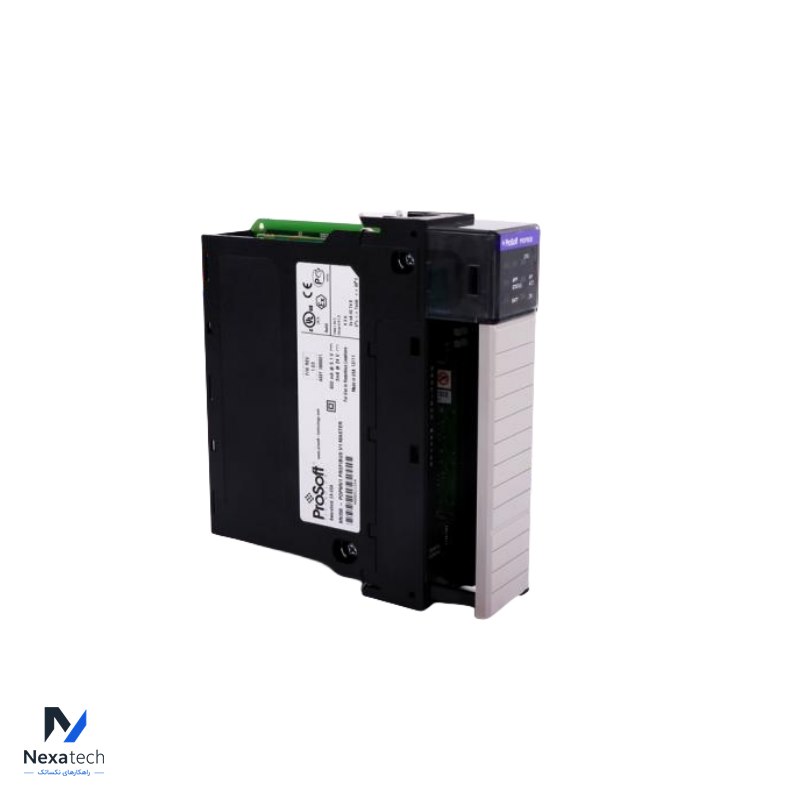

Name: PROSOFT MVI56-PDPMV1 PROFIBUS DPV1 Master
Brand: Prosoft
SKU: MVI56-PDPMV1
Availability: InStock

مشخصات فنی

Brand Name:	PROSOFT
Model Number:	MVI56-PDPMV1
Alternate Part Number	MVI56-PDPMV1
Condition:	100% Original
Dimensions	3.5x14x14.5cm	Weight	0.3kg
Description	PROFIBUS DPV1 Master	Warranty:	12 Months

The ProSoft MVI56-PDPMV1 is a PROFIBUS DPV1 Master Module designed for use with systems. This module enables controllers to act as a PROFIBUS DP Master, facilitating communication with PROFIBUS DP devices and networks. The DPV1 (Decentralized Peripherals Version 1) capability allows for advanced data exchange and diagnostics.

Battery Life Advisory

The MVI46, MVI56, MVI56E, MVI69, and MVI71 modules use a rechargeable Lithium Vanadium Pentoxide battery to backup the real-time clock and CMOS. The battery should last for the life of the module. The module must be powered for approximately twenty hours before the battery becomes fully charged. After it is fully charged, the battery provides backup power for the CMOS setup and the real-time clock for approximately 21 days. When the battery is fully discharged, the module will revert to the default BIOS and clock settings.

System Requirements

The MVI56-PDPMV1 module requires the following minimum hardware and software components:

 processor, with compatible power supply

and one free slot in the rack, for the MVI56-PDPMV1 module. The module

requires 800 mA of available power.

 RSLogix 5000 programming software version 2.51 or

higher

 RSLinx communication software

 Pentium®

II 450 MHz minimum. Pentium III 733 MHz (or better)

recommended

 Supported operating systems:
