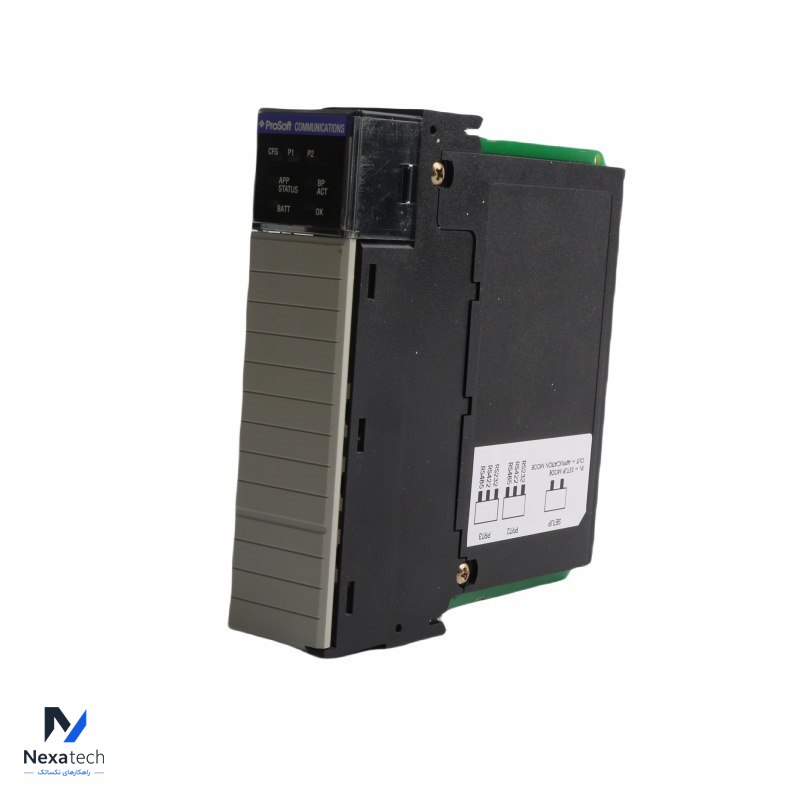

Name: PROSOFT MVI56-MDA4 MDA Scientific CM4 Gas Analyzer Master Module
Brand: Prosoft
SKU: MVI56-MDA4
Availability: InStock

مشخصات فنی

Brand Name:	PROSOFT
Model Number:	MVI56-MDA4
Alternate Part Number	MVI56-MDA4
Condition:	100% Original
Dimensions	3.5 cm x 14 cm x 14.5 cm	Weight	0.24kg
Description	MDA Scientific CM4 Gas Analyzer Master Module	Warranty:	12 Months

This application is useful for any industry producing, using, or exposed to toxic or corrosive gases, where interfacing the MDA4 Gas Analyzer with a processor is required.

The MVI56 MDA Scientific CM4 Gas Analyzer Master Module allows processors to interface easily as a host with MDA Scientific CM4 gas monitoring hardware (See MVI56- MDA16 for a System 16 solution).

Features and Benefits

The MVI56-MDA4 module acts as an input/output module between the CM4 network and the backplane. The data transfer from the processor is asynchronous from the actions on the CM4 network. A 5000-word register space in the module is used to exchange data between the processor and the CM4 network.

General Specifications

• Single Slot – 1756 backplane compatible

• The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module

• Ladder Logic is used for data transfer between module and processor. Sample ladder file included.

• Configuration data obtained from configuration text file downloaded to module. Sample configuration file included

• Local or remote rack
