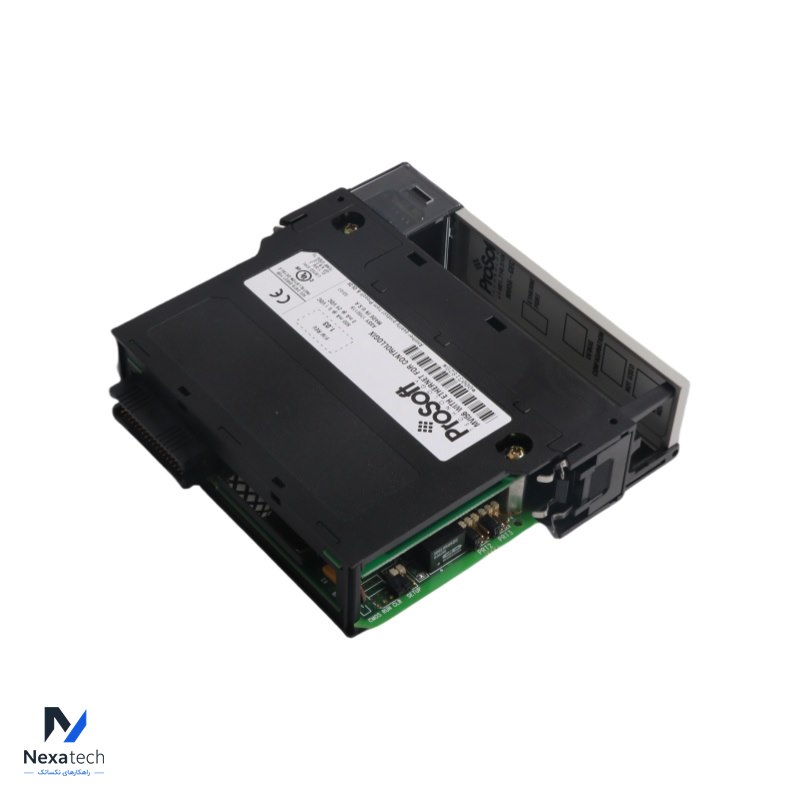

PROSOFT MVI56-GEC Generic ASCII Ethernet Communication Module
پارتنامبر: MVI56-GEC
توضیحات محصول
Generic ASCII Ethernet Communication Module
مشخصات فنی
| Brand Name: | PROSOFT | ||
| Model Number: | MVI56-GEC | ||
| Alternate Part Number | MVI56-GEC | ||
| Condition: | 100% Original | ||
| Dimensions |
3.5x14x14.5cm | Weight | 0.28KG |
| Description | Generic ASCII Ethernet Communication Module | Warranty: | 12 Months |
| | | | |
The PROSOFT MVI56-GEC is a Generic ASCII Ethernet Communication Module designed for platform. It allows the processors to communicate with devices that use generic ASCII protocols over Ethernet. This module is ideal for applications where communication with custom or proprietary systems using ASCII messaging is required.
System Requirements
The MVI56-GEC module requires the following minimum hardware and software
components:
processor, with compatible power supply and one free slot in the rack, for the MVI56-GEC module. The module requires 800 mA of available power.
RSLogix 5000 programming software version 2.51 or higher
RSLinx communication software
Pentium®
II 450 MHz minimum. Pentium III 733 MHz (or better) recommended
Supported operating systems:
o Microsoft Windows XP Professional with Service Pack 1 or 2
o Microsoft Windows 2000 Professional with Service Pack 1, 2, or 3
o Microsoft Windows Server 2003
128 Mbytes of RAM minimum, 256 Mbytes of RAM recommended
100 Mbytes of free hard disk space (or more based on application requirements)
256-color VGA graphics adapter, 800 x 600 minimum resolution (True Color 1024 × 768 recommended)
CD-ROM drive
ProSoft Configuration Builder, HyperTerminal or other terminal emulator program.
Package Contents
The following components are included with your MVI56-GEC module, and are all required for installation and configuration.
