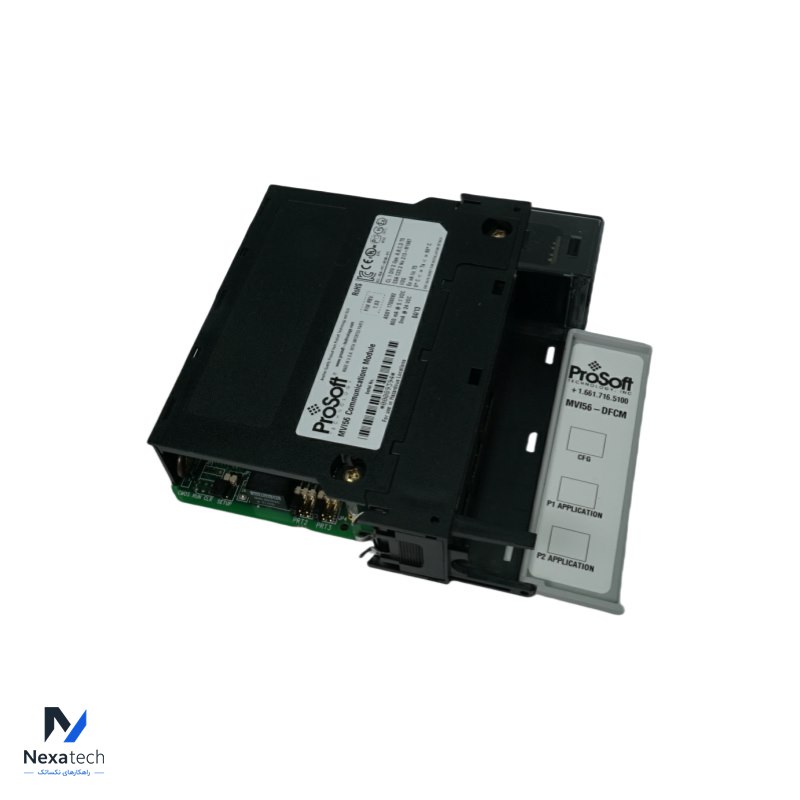

Name: PROSOFT MVI56-DFCMR DF1 Communication Module with Remote Chassis
Brand: Prosoft
SKU: MVI56-DFCM
Availability: InStock

مشخصات فنی

Brand Name:	PROSOFT
Model Number:	MVI56-DFCMR
Alternate Part Number	MVI56-DFCMR
Condition:	100% Original
Dimensions	5.4cm13.5cm13.3cm	Weight	0.4KG
Description	DF1 Communication Module	Warranty:	12 Months

The MVI56-DFCMR module is the ideal solution for many applications where DF1 protocol connectivity must be added to a platform. The MVI56-DFCMR module can be found in many industrial sectors and in the following applications:

• Foreign device data concentrator

• SCADA System Pipelines and offshore platforms

• Food processing

• Mining

• Pulp and paper

The MVI56 DF1 Master/Slave Communication Module with Reduced Data Block is a backplane compatible module that allows I/O compatible processors to easily interface with DF1 protocol compatible devices and hosts. Devices commonly supporting the protocol include PLCs and power monitoring equipment, as well as several other third party devices in the marketplace. This module uses a small I/O data area for data transfer between the module and the processor, making it ideal for ControlNet or Ethernet applications with the module in a remote rack.

Features and Benefits

The MVI56-DFCMR (DF1 Communication Module with Remote Chassis) allows I/O compatible processors to interface easily with other DF1 protocol compatible devices. Compatible devices include not only Modicon PLCs (which all support the DF1 protocol) but also a wide assortment of end devices. The module has two serial ports supporting the DF1 protocol, with each port user-configurable to act as a master or as a slave. Data transfer between the module and the processor is asynchronous to the

DF1 network, with the module's internal database being used to exchange data between the processor and the DF1 network.
