PROSOFT MVI46-MCM 3ADT220090R0006 Modbus Communication Module

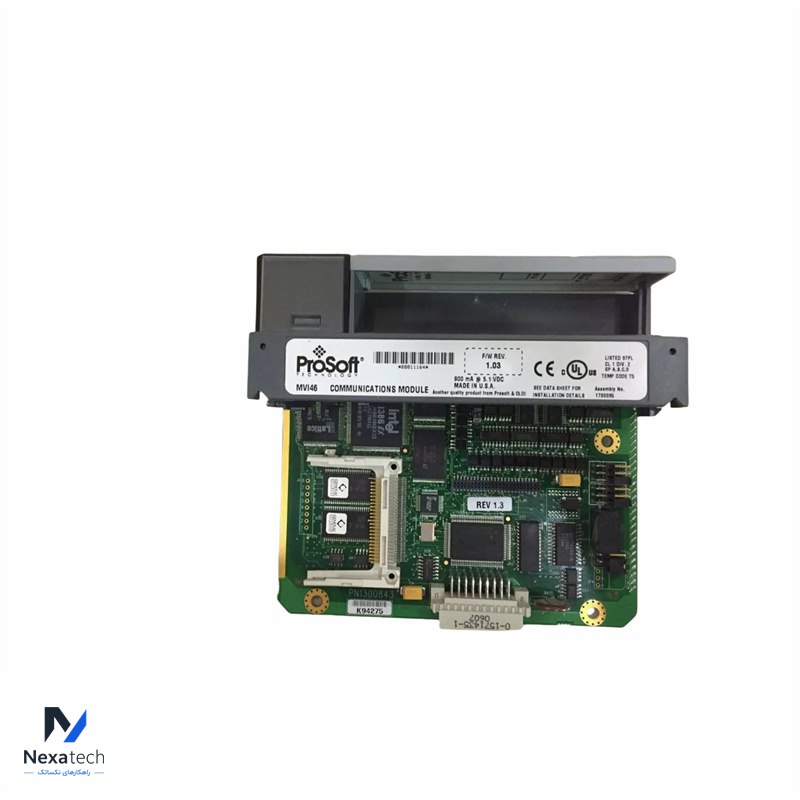

ProSoft MVI46-MCM is a SLC Platform Modbus Communication Module. This module is developed by ProSoft Technology that is specifically compatible with SLC 500 processors. This module is a single slot module, compatible to any 1746 backplane, configured as local or extended rack. It has One (1) RJ45 (DB-9M with supplied cable) RS-232 only configuration port and Two (2) RJ45 RS-232/422/485 Application ports.

Description:
Part Number: MVI46-MCM

Model: Modbus Communication Module

Brand: Prosoft Technology

Condition: New & Original in Factory Packing

Factory Warranty: 12 Months

Common questions:

1.What are the main functions of MVI46-MCM module?

MVI46-MCM is a Modbus communication module for SLC 500 systems, supporting Modbus master/slave protocol and allowing SLC processors to communicate with Modbus RTU devices.

2.How does this module communicate with the SLC 500 controller?

MVI46-MCM performs data transmission through the backplane of SLC 500 and seamlessly integrates with the SLC 500 controller.

3.What are the supported Modbus function codes?

The module supports standard Modbus function codes, such as read/write coils, hold registers, input registers, etc. Specific function codes include 01, 02, 03, 04, 05, 06, 15, 16, etc.

4.How to configure MVI46-MCM module?

The module configuration is carried out through ProSoft Configuration Builder (PCB) software. Users need to define Modbus network parameters, node addresses, function codes, and data transmission configurations.

5.How many Modbus devices does the module support?

MVI46-MCM can communicate with up to 32 Modbus slave devices simultaneously, depending on the network architecture and configuration.

6.How to diagnose communication issues with modules?

The LED indicator lights on the module can be used to monitor the communication status, while the diagnostic function in the PCB software can be used to view error codes and status information. Ensure that the address, baud rate, and protocol configuration are correct.

7.What is the baud rate range of the module?

MVI46-MCM supports baud rates ranging from 300 to 115200 and can be flexibly configured according to network requirements.
