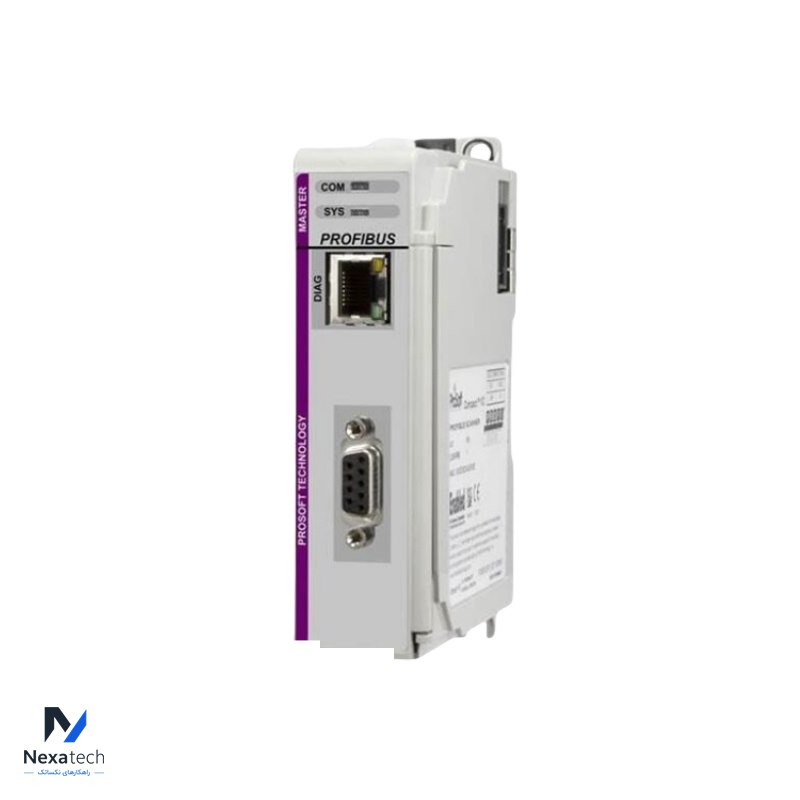

Name: PROSOFT ILX69-PBM PROFIBUS DPV1 Master module
Brand: Prosoft
SKU: ILX69-PBM
Availability: InStock

مشخصات فنی

Brand Name:	PROSOFT
Model Number:	ILX69-PBM
Alternate Part Number	ILX69-PBM
Condition:	100% Original
Dimensions	4x9.2x13cm	Weight	0.14kg
Description	PROFIBUS DPV1 Master module	Warranty:	12 Months

The ILX69-PBM PROFIBUS DPV1 Master module provides all the advantages of in-chassis PROFIBUS communication, such as the inclusion of an AOI and the Autoscan features which greatly reduce your commissioning time, and ComDTM that provides remote Ethernet

connectivity with asset management software.

With these modules, processors can easily communicate with slave devices supporting PROFIBUS DPV0 and DPV1 protocol. The module acts as an input/output module between the PROFIBUS network and the processor supporting complete Master

specifications according to IEC 61158.

Features

 AOI: Module communication is integrated within Studio/RSLogix 5000 using a sample Add-On Instruction (AOI), or sample ladder logic file, reducing commissioning time.

 Autoscan: The new Autoscan feature reduces start up times and simplifies troubleshooting by scanning the PROFIBUS network and uploading slave device addresses and configuration information. (Reads and maps nodes automatically to the module.)

 ComDTM: Allows remote Ethernet connectivity with Asset Management Software significantly lowering maintenance costs.

You can configure, commission, maintain and diagnose your fieldbus devices throughout their entire lifecycle with this comprehensive, fully integrated engineering and maintenance environment.

 SD card slot (SD card optional) is used for storing configuration files in the event of a disaster. It can also be used to update the firmware of the module without the need of a 1769 CPU.
