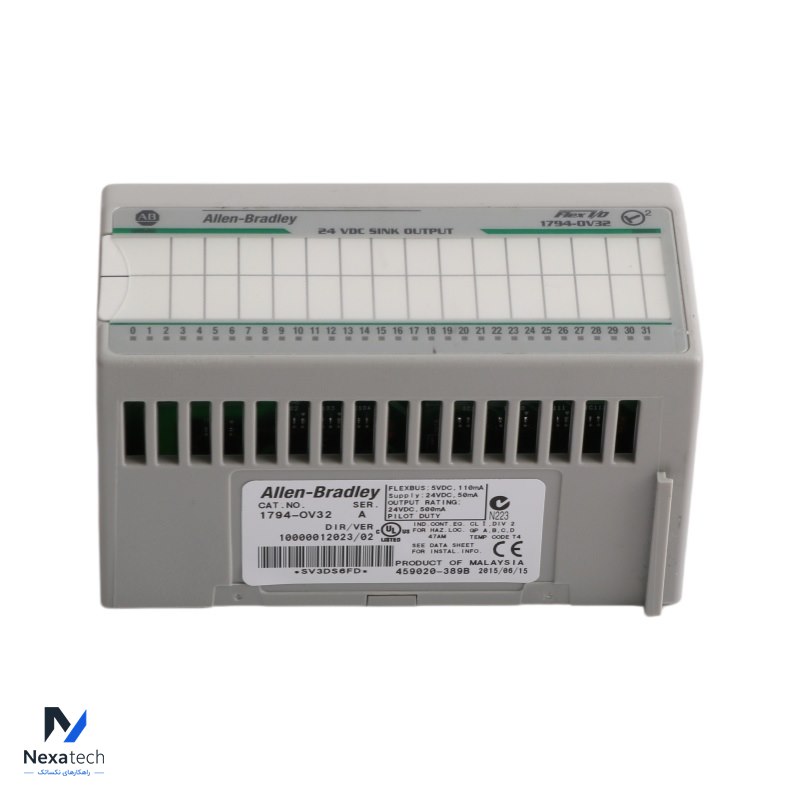

PLC 1794-OV32 Digital Output Module

Specification

Brand Name

PLC

Number of Outputs: 32
Output Voltage (Nominal): 24 V DC
Surge Current: 2 A for 50 ms each
Off-state Leakage (Maximum): 0.5 mA
Isolation Voltage: 50 V
Flexbus Current: 110 mA @ 5 V DC
Power Dissipation (Maximum): 4.4 W @ 31.2 V DC
Thermal Dissipation (Maximum): 8.53 BTU/hr @ 31.2 V DC
External DC Power Voltage Range: 10 to 31.2 V DC
Operating Temperature: 0 to 55 °C (32 to 131 °F)
Storage Temperature: -40 to +85 °C (-40 to +185 °F)
Vibration: 5 g @ 10 to 500 Hz
Shock (Operating): 30 g

Model Number

1794-OV32

Alternate Part Number

1794-OV32

Condition

100% Original

Dimensions

9.2x5.4x4.8cm

Description

Digital Output Module

Weight

0.08kg

Warranty

12 Months
