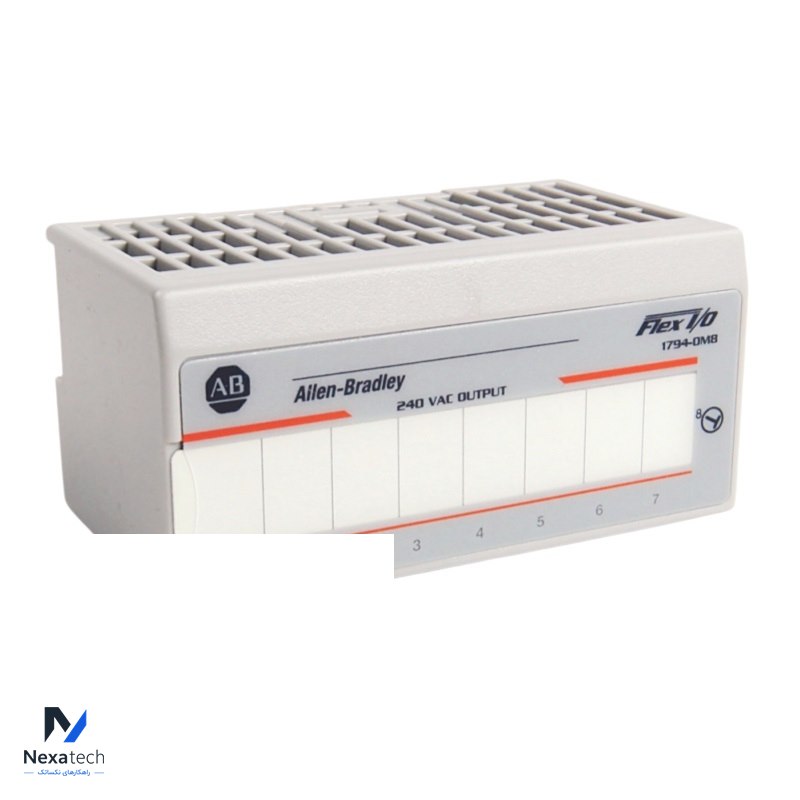

PLC 1794-OM8 Digital Output Module

Specification

Brand Name

PLC

Number of Outputs: 8
Output Current Rating: 4.0 A (8 outputs @ 500 mA)
On-state Current: 50 mA per output minimum
Surge Current: 7 A for 40 ms
Flexbus Current: 60 mA @ 5 V DC
Power Dissipation: 5.0 W maximum @ 0.5 A
Thermal Dissipation: 17.1 BTU/hr maximum @ 0.5 A
Storage Temperature: -40 to 85 °C (-40 to 185 °F)
Relative Humidity: 5 to 95% non-condensing
Shock (Operating): 30 g

Model Number

1794-OM8

Alternate Part Number

1794-OM8

Condition

100% Original

Dimensions

9.3x5.3x4.5cm

Description

Digital Output Module

Weight

0.1kg

Warranty

12 Months
