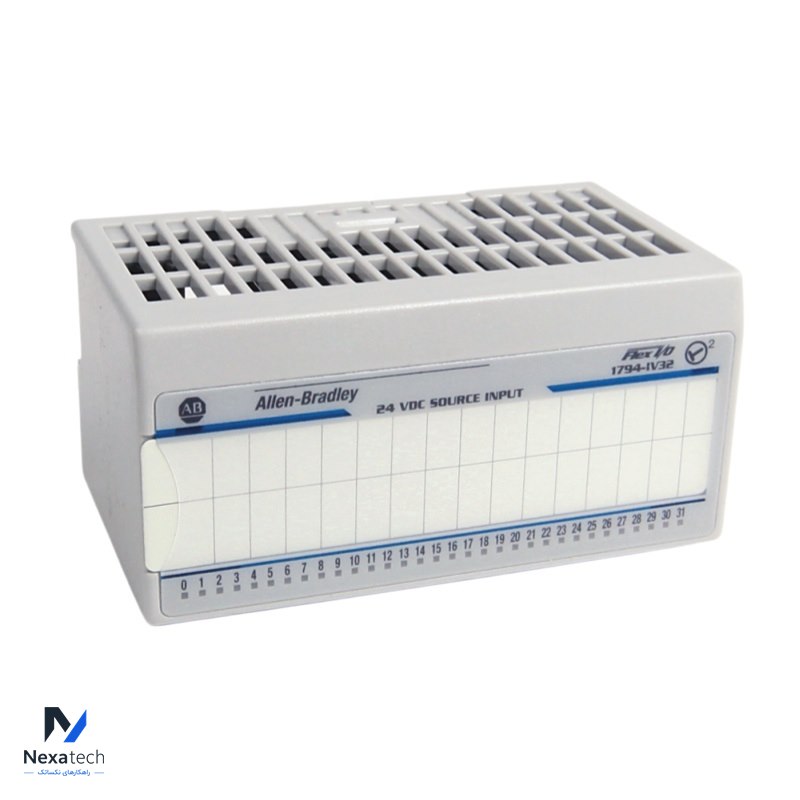

PLC 1794-IV32 Digital Input Module

Specification

Brand Name

PLC

Off-state Current (Maximum): 1.5 mA
Input Impedance: 6 kΩ
Number of Inputs: 32
Isolation Voltage: 50 V
Flexbus Current: 40 mA @ 5 V DC
Power Dissipation (Maximum): 6 W @ 31.2 V DC
Thermal Dissipation (Maximum): 20.5 BTU/hr @ 31.2 V DC
External DC Power Voltage Range: 19.2 to 31.2 V DC (includes 5% AC ripple)
Operating Temperature: 0 to 55 °C (32 to 131 °F)
Storage Temperature: -40 to +85 °C (-40 to +185 °F)
Relative Humidity: 5 to 95% noncondensing
Shock (Operating): 30 g

Model Number

1794-IV32

Alternate Part Number

1794-IV32

Condition

100% Original

Dimensions

9.2x5.4x4.8cm

Description

Digital Input Module

Weight

0.08kg

Warranty

12 Months
