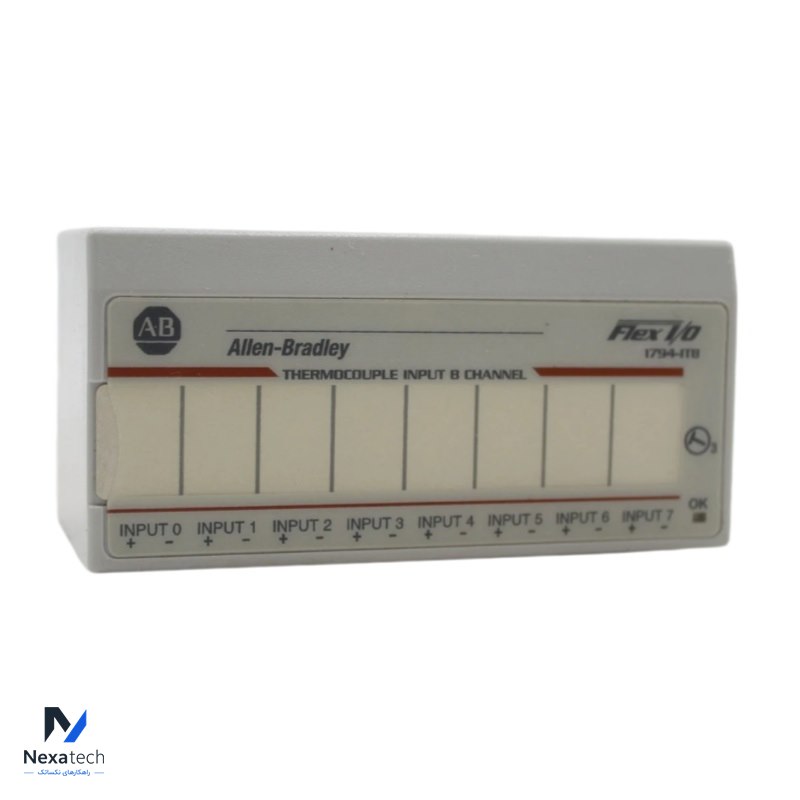

PLC 1794-IT8 Thermocouple Input Module

Name: PLC 1794-IT8 Thermocouple Input Module
Brand: PLC Module
SKU: PLC 1794-IT8 Input Module
Availability: InStock

پارت‌نامبر: PLC 1794-IT8 Input Module

توضیحات محصول

Thermocouple Input Module

Specification
Brand Name	PLC	Number of Inputs: 8 channels Nominal Input Ranges: -76.5 to +76.5 mV Resolution: 16 bits (2.384 µV typical) Common Mode Rejection: -115 dB @ 60 Hz; -100 dB @ 50 Hz Common Mode Input Range: +10 V maximum Normal Mode Noise Rejection: -60 dB @ 60 Hz Input Offset Drift (with Temperature): +6 mV/°C maximum Channel to Channel Isolation: +10 V Flexbus Current: 20 mA Power Dissipation: 3.0 W maximum @ 31.2 V DC Thermal Dissipation: 10.2 BTU/hr maximum @ 31.2 V DC Keyswitch Position: 3



Model Number	1794-IT8
Alternate Part Number	1794-IT8
Condition	100% Original
Dimensions	9.3x5.3x4.5cm
Description	Thermocouple Input Module
Weight	0.1kg
Warranty	12 Months
