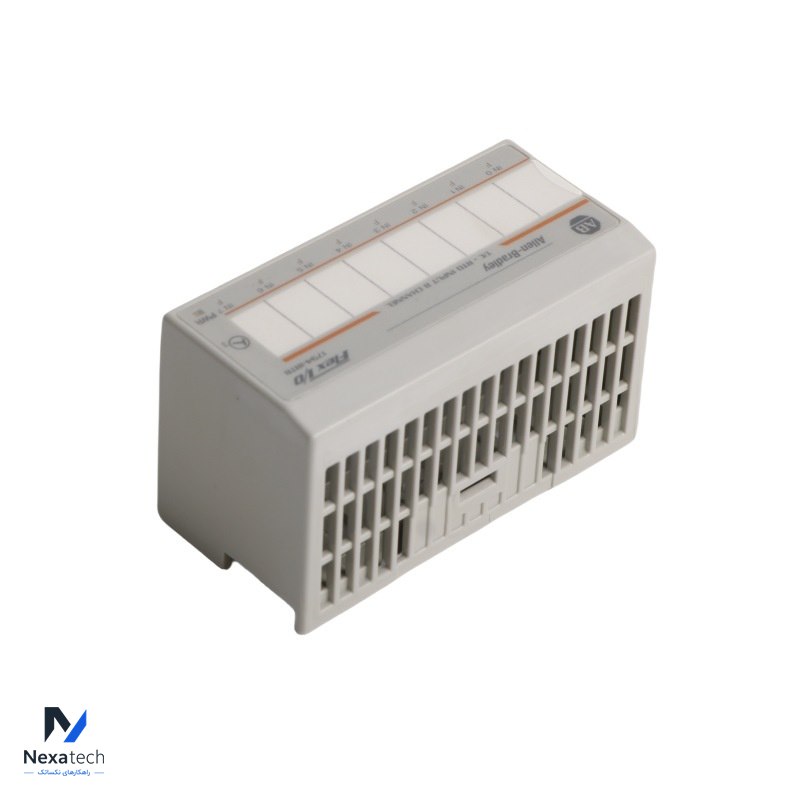

PLC 1794-IRT8 Thermocouple RTD Module

Number of Inputs: 8 channels
Resolution: 14 bits
Common Mode Rejection: -80 dB @ 5V peak-to-peak, 50…60 Hz
Common Mode Input Range, Min: +15V
Overvoltage Capability: 15V DC continuous at 25 °C
Overall Drift with Temperature, Max: 50 ppm/°C of span
Cold Junction Compensation Range: -20…+100 °C
Flexbus: 5V DC, 40 mA
Power Dissipation, Max: 3.0 W @ 31.2V DC
Thermal Dissipation, Max: 10.2 BTU/hr @ 31.2V DC
Keyswitch Position: 3
Temperature, Operating: -20…+55 °C (-4…+131 °F)
Relative Humidity: 5…95% noncondensing
Vibration: 5 g @ 10…500 Hz
