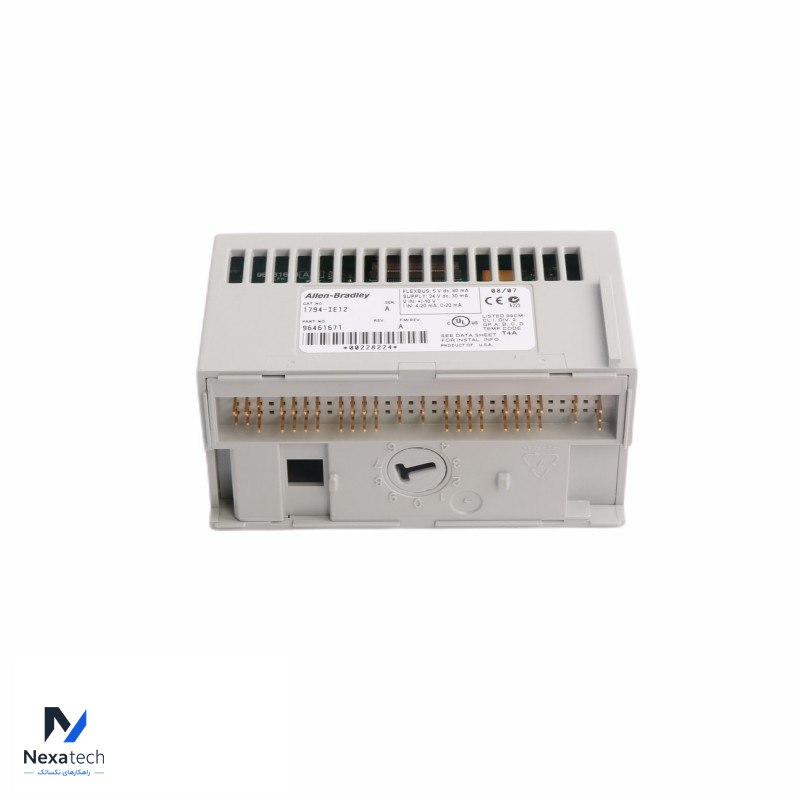

PLC 1794-IE12 Analog Input Module

Specification

Brand Name

PLC

Number of Inputs: 12 single-ended
Resolution (Voltage/Current): 320 μV/cnt
Conversion Rate (All Channels): 8.0 ms
Input Current Terminal: 4 to 20 mA
Maximum Overload: 30 V continuous or 32 mA continuous
Input Impedance (Voltage Terminal): > 1 MΩ
Absolute Accuracy (Voltage Terminal): 0.1% full scale @ 25 °C
External DC Power Supply (Nominal): 24 V DC
FlexBus Current: 80 mA
Power Dissipation (Maximum): 1.2 W @ 31.2 V DC
Thermal Dissipation (Maximum): 4.1 BTU/hr @ 31.2 V DC
Operating Temperature: 0 to 55 °C (32 to 131 °F)
Non-operating Temperature: -40 to 85 °C (-40 to 185 °F)
Relative Humidity: 5 to 95% noncondensing
Vibration: 5 g @ 10 to 500 Hz

Model Number

1794-IE12

Alternate Part Number

1794-IE12

Condition

100% Original

Dimensions

9.3x5.3x4.5cm

Description

Analog Input Module

Weight

0.1kg

Warranty

12 Months
