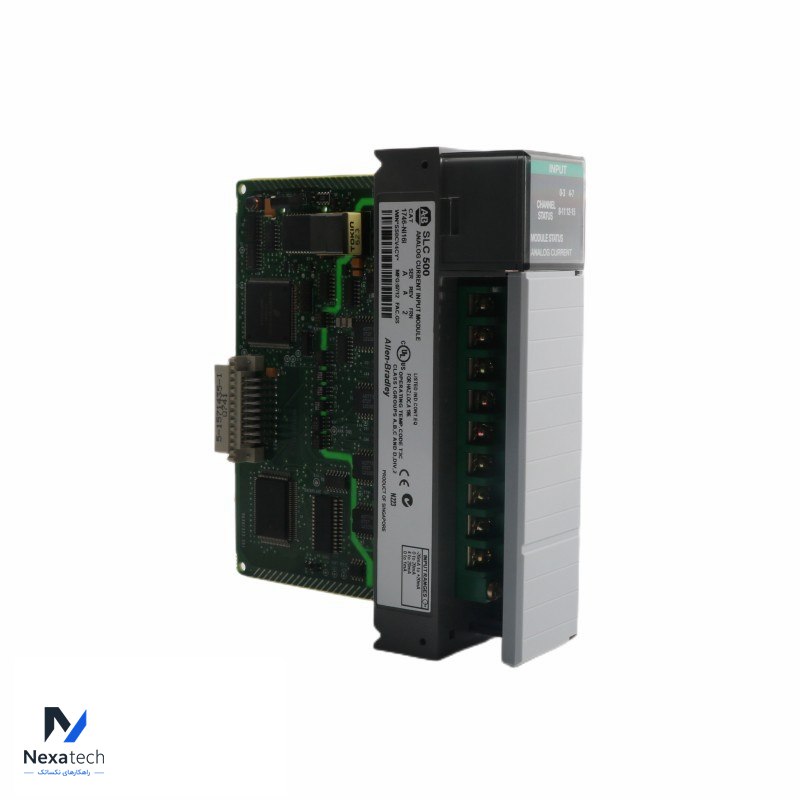

PLC 1746-NI16I Analog Input Modules

Backplane Current Consumption: 125 mA at 5V DC, 75 mA at 24V DC
Number of Channels: 16
Common Mode Rejection:Greater than or equal to 75 dB at DC
Isolation: 500V AC isolation for 1 second
Maximum Wire Size: Two 14 AWG wires per terminal
Operating Temperature: 0°C to +60°C (+32°F to +140°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Relative Humidity: 5% to 95% (non-condensing)
Current Input (maximum): ±30 mA
Display Resolution: 1 mV or 1 µA
