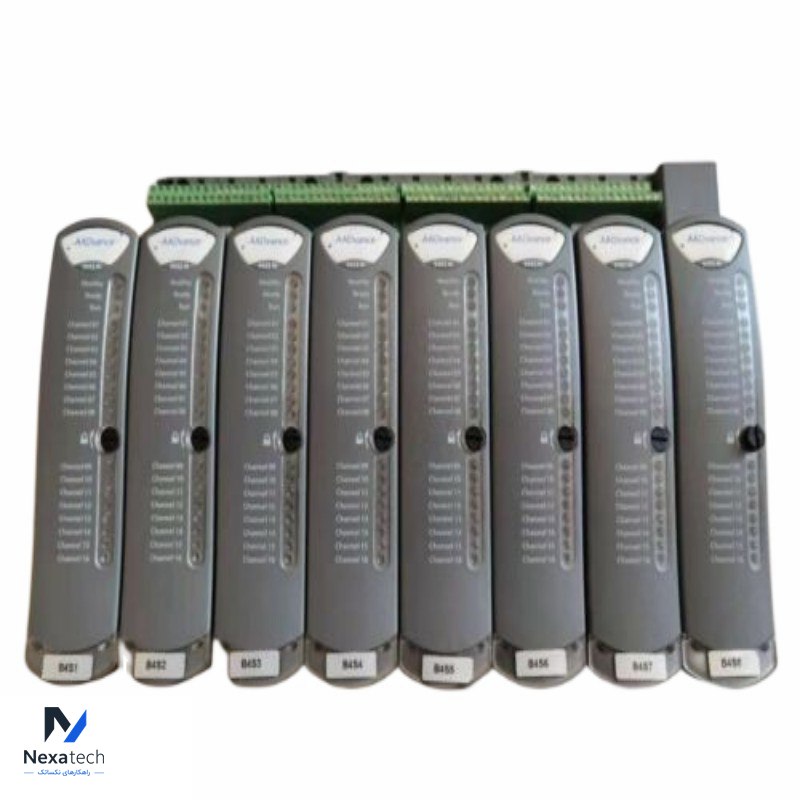

Name: ICS TRIPLEX T9432 Analog Input Module
Brand: ICS Triplex
SKU: T9432
Availability: InStock

Brand Name:	ICS TRIPLEX
Model Number:	T9432
Alternate Part Number	T9432
Condition:	100% Original
Dimensions	4.1x12.1x16.5cm	Weight	0.36kg
Description	Analog Input Module	Warranty:	12 Months

The ICS Triplex T9432 Analog Input Module is part of the Trusted® TMR (Triple Modular Redundant) system by ICS Triplex, designed for use in high-integrity safety applications. It provides reliable and fault-tolerant analog input operations, making it ideal for critical industrial environments like oil and gas, power generation, and chemical processing.

Specification	Details
Manufacturer	ICS Triplex
Model	T9432
Type	Analog Input Module
Number of Input Channels	32 channels
Input Range	Configurable per channel for various voltage or current signals
Input Types	Voltage, current, and resistance inputs
Resolution	16-bit
Input Signal Ranges	-10V to +10V, 0-5V, 0-10V, 4-20mA, etc. (configurable based on system requirements)
Channel Isolation	Channels are isolated to prevent cross-channel interference
Fault Tolerance	Triple Modular Redundant (TMR) architecture ensures continued operation even in the event of a fault
Diagnostics	Continuous self-test and diagnostics for fault detection
Accuracy	Typically ±0.1% of full-scale input range
Common Mode Rejection	High common-mode rejection for noisy industrial environments
Input Overvoltage Protection	Yes, each channel is protected from voltage surges
Power Consumption	Low power consumption typical for high-density modules
Channel Sampling Rate	High-speed input processing for real-time data acquisition
Environmental Specifications	Designed to operate in harsh environments with high reliability
Operating Temperature	-5°C to 60°C (23°F to 140°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
Humidity	5% to 95% RH (non-condensing)
Dimensions (H x W x D)	Standard Trusted® form factor, fitting the ICS Triplex chassis
Weight	Approximately 1-2 kg

Additional Features:
TMR (Triple Modular Redundancy): Each input is processed by three independent processors, with majority voting to ensure reliable input data.
Hot-swappable: Modules can be replaced without shutting down the system, providing high availability.
Configurable Input Channels: Allows customization for various analog input signals like voltage or current, ensuring flexibility.
Diagnostics and Fault Detection: Continuous self-testing and diagnostics for channel health, providing alarms in case of faults.
The ICS Triplex T9432 is commonly used in safety-critical applications, such as emergency shutdown systems, fire and gas detection, and turbine control, where input integrity is crucial for the operation of safety systems.
